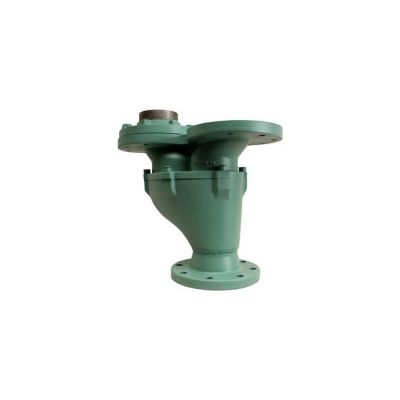

3-Way Valve

The 3-Way Valve is available in 4”, 6” and 8” sizes and is available as a stand-alone valve or as part of a Vaughan submersible or vertical wet-well Chopper Pump. The valve is a non-plug design using a rotatable CD-4MCu valve disc to allow discharge out of either of the top ports. The Flow may even be split between the two ports. The valve cover provides dual discharge flanges; the valve body provides a single inlet flange. The valve disc may be manually rotated with a handle or may be driven by an optional electric motor powered, ball-screw actuator.
