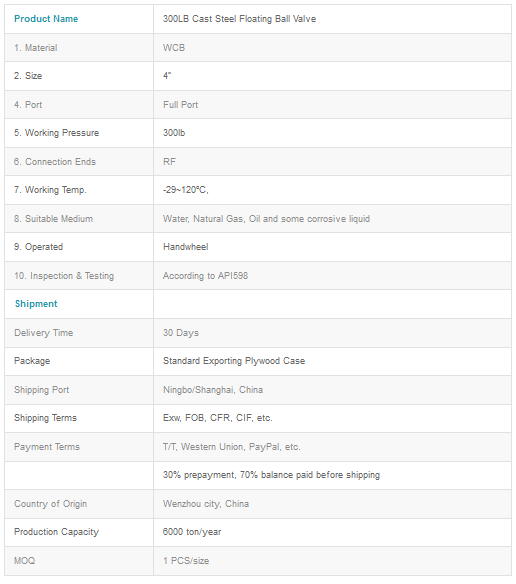

STV - Model Q41F-300LB-WCB-3 -300LB Cast Steel Floating Ball Valve
Our 300LB Cast Steel Floating Ball Valve With ANSI 300# full bore 2 piece Ball Valve. A WCB body and stainless steel 316 ball, with RPTFE seats for High Temperatures. Principle of the cast steel floating ball valve: This kind of ball valve has a floating ball supported by two valve seats. Under the medium pressure effect, a certain displacement can be generated by the ball itself so as to be pressed onto the seat seal ring at the outlet, guaranteeing tightness at the outlet. floating ball valve is mainly used in middle or low pressure application.
Most popular related searches
floating ball valve
ball valve
2-piece ball valve
float valve
flanged ball valve
electric actuator
full bore ball valve
- Design and Manufacture:API 6D,ASME B16.34(BS5351),API 608,MSS-SP-72
- Face to Face Dimension:ASME B16.10,API 6D
- Flange Connection Dimension:ASME B 16.5
- BW Connection Dimension:ASME B16.25
- Test and Inspection:API 598,API 6D
- Fire-Safe Design:API 607/6FA
- Anti-Static Design&Anti Blow-Out Stem
Product Range
- Body material: carbon steel, stainless steel, alloy steel
- Full bore and reduced bore design
- Nominal diameter:1/2″~10″(DN15~DN250)
- End Connection: RF,RTJ, BW
- Pressure range: Class150~600(PN16~PN100)
- Working temperature: -46?~+200?
- Operation : Handle, Gear, Electric actuator, etc
