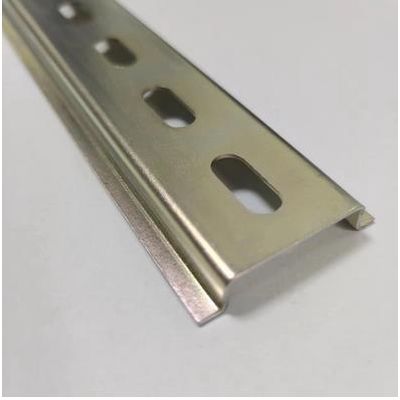

T&G - Model TS -DR D357.5E10 -35x7.5mm Top Hat Steel Din Rail
There are two specifications available for Top Hat Steel DIN Rail, DR 357.5E10 TS 35x7.5 DIN rail and DR 3515E15 NS 35x15 DIN rail. With the same structure and size, there is a distinction between a height of 7.5mm and 15mm. 15mm high din rails have better rigidity and larger load capacity, please choose according to the working conditions.
Most popular related searches
The minimum packaging for the DR 357.5E10 din rail is 50 pieces/pack, and the minimum packaging for the DR 3515E15 is 30 pieces/pack.The din rail length is generally divided into 1000mm and 2000mm, and the hole size is divided into 6.2 * 15 * 25 (hole width * hole length * two hole centre-to-centre distance) and 5.2 * 25 * 36 4. Accept customized specifications.
- DR D357.5E10 is a steel DIN rail. Stable tolerance size and high rigidity.
- Professional surface treatment, the surface galvanized layer is free of impurities, with crystal flash.
- It has good thermal conductivity and grounding performance
- Model: DR D357.5E10
- Width: 35mm
- Height: 7.5mm
- Thickness: 1mm
- Length: 1M, 2M,Customized
- Type: Top Hat, G Type, Mini Type
- Material: Aluminum, Steel, Stainless Steel
- Perforation: Slotted, Unslotted
- Hole Size: 5.5*15*25/ 5.5*25*36/ 6.2*15*25/ Customized
- Surface Treatment: Electroplated/ Hot Dip Galvanizing/ Anodized
- Color: Bule White/ Iridescent
- Standard: EN60715/ RoHS/ REACH
- MOQ: 100PCS
- Application: Circuit Breaker/ Terminal Blocks/ Distribution Carbinet
- Lead Time: 10-15 Days Approx.
- Payment: T/T, L/C, Paypal
- Lead Time: 15-25 Days
- Tolerance: ±2mm
