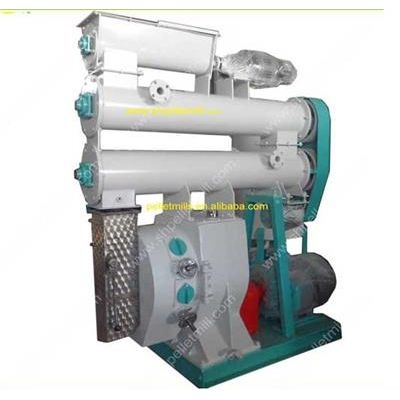

Double-Crane - Model SZLH320 -37KW Ring Die Pellet Machine for Feed
SZLH320 ring die pellet machines are patented products with unique design by Shandong Double Crane Machinery Manufacture Co., Ltd, the professional feed production line producer in China. The szlh320 feed pellet machine is one of the key machines in the feed production line. It’s die mold is made of stainless steel or alloy steel for your choice. This pellet machine has the characteristics of low cost, reasonable structure, compact layout, reliable performance and easy maintenance. our web: shpelletmill.com feedmillplants.comMost popular related searches
pellet plant
pelletizer
pelletizing
pellet die
magnetic separation
lubricant system
bearing condition
granulator
- Driven by variable frequency motor, the feeder can be adjusted automatically within a certain scope according to the production;
- The interlock device, outer machine discharging device and over-load protection device work together to ensure the safety and reliability;
- Magnetic separation and removal mechanisms are configured to prevent the iron impurities from entering into the suppression of granulation chamber.
- The cooking time and result are highly improved by the extended stainless steel feeding conditioner with the axial inlet steam.
- The circulating lubrication oil system is specially designed to ensure the bearings in good condition.
- The ordinary conditioner, thermal insulation conditioner or double-shaft differential conditioner are options according to your requirements.
- Capacity (t/h) 2-4
- Main Power(kw) 27
- Conditioner Power (kw) 2.2
- Feeder Power(kw) 0.75
- Inside Diameter(mm) 320
- Pellet size(mm) 2-8
- Machine Size(mm) 2150*780*1740
- Machine Weight(t) 2.1
- Remark Optional pellet machine power, 22kw /37kw/55kw/110kw/132kw
