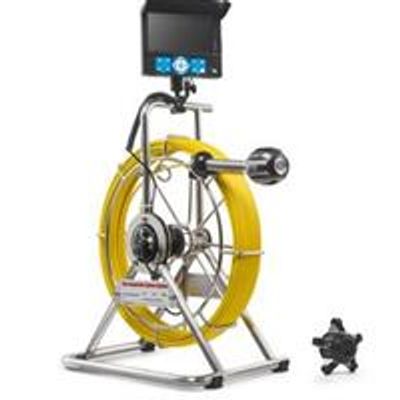

TvbTech - Model 3399F -38mm New Model Sewer Drain Pipe Inspection Camera System with 40m/130ft ~ 60m/200ft Cable

What’s included?

• 1 x 38mm Camera head
• 1 x 40-60m push cable
• 1 x professional 7" monitor with DVR
• 1 x 72 Roller Skid (for pipe diameter 4"-5")
• 1 x 120 universal Skid (for pipe diameter 5 "12")
• 1 x battery pack
• 1 x remote control
• 1 x screw driver
• 1 x power adapter
• 1 x car charger
• 1 x universal installation brackets

Packing details:

• 1 unit in one carton
• Carton G.W.: 13kg-16kg
• Carton Measurement: 60 x 60 x 40cm

Key Features:

• 1/3" Sony CCD camera, 120°wide vision angle, 752H * 582V pixels
• Camera Size Φ38mm×81mm（main body）
• Two roller skids, mini one at dia.72mm, another universal skid at dia.115-250mm
• Sapphire glass lens cover, 12 white LEDs
• Diameter of camera:38mm, Focus Distance 12cm (approx)
• Water proof level, 20m underwater (camera fix on cable)
• Push cable dia. 6.8mm
• 7” LCD color monitor
• Support SD Card slot to store still pictures or videos
• One push record button
• LED brightness control buttons
• Video image rotate button
• With microphone for audio recording
• Built-in rechargeable battery lasts up to 5 hours
• On-Screen date and time
• With self-leveling feature
• On-screen meter/ft. distance display
• With keyboard for text input
• 40-60m fiberglass push rod
• Built-in 512hz sonde(optional)
• With universal installation brackets

Optional feature:

• Camera head with built-in 512Hz sonde
• Optional camera skids:
• Caster Skid: POM ￠134x83.9. 30mm Wheel
• POM Skid: POM ￠78x83.9
• Ball Support:POM S￠60x53.5
• Lock Sleeve:POM ￠54.6x38
• Keyboard for text input
• Optional cable length: 40M, 50M,60M

• For Professional Pipeline, Drain, Sewer, Duct, Chimneys, Machinery and Building Inspection;
• For Maintenance of Plumbing

• Camera Head
• Camera Size: Φ38mm×81mm（main body）
• Camera Total Length: 318mm
• Sensor: 1/3" Sony CCD, 480 TV-Line
• Pixel: 752H * 582V
• View Angle: 120°
• Transmitter: 512hz built-in(selectable)
• Self leveling: Built-in
• Focus Distance: 12cm (approx)
• Depth-of-Field: 120cm(approx)
• Front Lens: Sapphire glass
• Water-Proof: 20m Under Water(Camera fix on Cable)
• Shell Material: #304 stainless steel
• Lighting: Built-in 12×LED(White)
• Operating Temperature: -10~50℃/+14~+122℉
• Storage Temperature: -20~60℃/+4~+140℉
