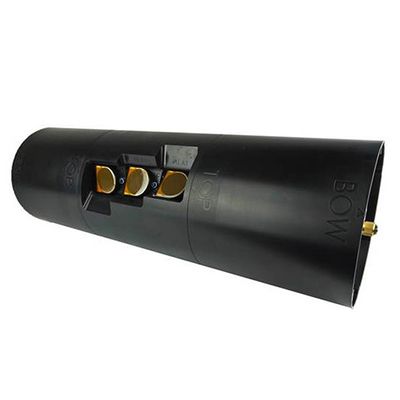

Teledyne BlueView - Model T2250-360 -3D 360° Tunnel Profiler Sonar

The T2250 is a 360° profiling sonar capable of gathering over 45,000 range measurements per second. The system is fully turn-key with on-board data logging and real-time collection and visualization capabilities through Teledyne PDS software. Built around a form factor intended for ROV and AUV deployment, the system fills a longstanding void in the tunnel and cave inspection market. Tunnel Profiler is considered a module sensor and requires a vehicle/deployment which provides movement through the pipe/tunnel of interest.  Vehicle/deployment must have reliable Navigation, Heading, and Pitch/Roll available topside for Tunnel Profiling software.
