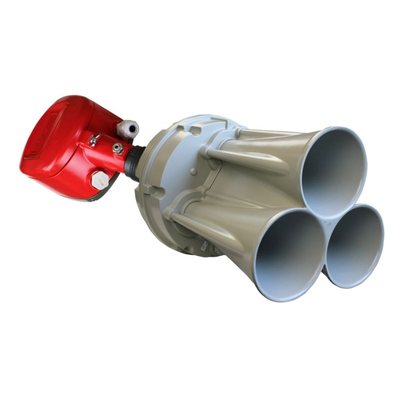

BinMaster - Model IECEx/ATEX -RL - Standard- 730-0646-EX -3D Acoustic Level Sensor
IECEx/ATEX 3D acoustic level sensor RL - standard with 7.67” diameter horn, 20-32 VDC, 4-20 mA output, Modbus, and RS-485 communications. Determines the average volume of stored materials based on a 15º beam angle in silos up to 14’ diameter and 200’ tall. Unit comes with internal LCD display and 3DVision software. Hazardous location approved for European Union and global applications. One-year warranty.
3DLevelScanner: Multiple Point Measurement for Accurate Volume
Advanced acoustics technology measures material topography in dusty environments for effective non-contact volume measurement.
Need volume accuracy in irregularly piled materials? 3D visualization to detect sidewall buildup?
Advanced acoustics-based technology is a proven performer in dusty powders and bulk solids.
5 Ways 3D is different:
- Most level sensors only measure a single point
- Optional 3D visualization of material topography
- Detects cone up, cone down, and sidewall buildup
- Provides minimum, maximum, and average distances
- Accounts for surface irregularities for accurate bin volume
3D excels in unevenly piled material:
- Grain, seed, feed, and food processing
- Ethanol, bioenergy, and power plants
- Aggregates and cement
- Mining and metals
- Chemical processing and plastics manufacturing
- Pulp, paper, and wood pellets
Inventory Management
Ensure adequate supply for production, prevent material shortages.
Remote Monitoring
Manage inventory while in the plant, while traveling, or away from the office.
Vendor Managed Inventory
Engage suppliers in replenishing the supply chain to optimize purchasing.
Storage Dome Monitoring
Monitor conveyed or truck loaded materials in large storage structures.
Pile Monitoring
Manage pile height, size, and volume of bulk materials.
- SKU: 730-0646-EX
- Means of Measurement: 3D Acoustic
- Measurement Type: Continuous Level
- Medium: Solids
- Voltage : 20-32 VDC
- Outputs: 4-20 mA, MODBUS protocol, RS-485
- Ambient Temperature: -40°F to +185°F (-40°C to +85°C)
- Process Temperature: Up to +176°F (80°C)
- Approvals: IECEx/ATEX
- Enclosure Type: IP 67
- Enclosure Material: Die cast aluminum
- Mounting: Mounting Flange
- Conduit Entry: 0.5" NPT
- Range: 200 ft. (61 M)
