Spaleck - 3D-Combi Screen
With our 2-in-l solution you are on the safe side. Your new 3D-Combi offers you perfect screening quality and maximum yield. When recycling and processing, you need high-performance technology. Every material places their own requirements on the screening technology. As our SPALECK 3D Combi has been developed together with leading recycling companies, this screening machine is tailored perfectly to your requirements and application.
Economic wonder:
SPALECK 3D Combi UNSURPASSED EFFICIENCY, even before the first day
With the 3D Combi, you invest in efficiency. Thanks to this 2 in 1 solution, you save money, steel construction and space. After the installation, the 3D Combi convinced with excellent, constant screening results and a convincing high-performance.
THE top performer for your entire system
3D Combi get the maximum from your recycling line
Screening technology does not only have to function optimally.
It must also carry out all of the work for the downstream processing steps when recycling – just like your new SPALECK 3D Combi.
Up to five screening fractions Clean separation cuts – optimal for your further processing
High-performance and absolutely reliable high-tech for screening developed and produced for our customers.
The SPALECK 3D Combi screening machine is the benchmark worldwide for profitable processing and recycling.
- Classification of difficult to sieve, sticky and moist
- materials for separation cuts from approx. 0.2 to 120 mm.
The version combination ensures an optimum loosening and circulation of the product on the upper deck. Even coarse grained material can be screened on a screening machine with Flip-Flow screening deck.
The cascade shaped screen deck arranged above the Flip-Flow screen deck with 3D screening segments protects and relieves the Flip-Flow screen mats. Their service life is increased and guarantees optimum screening results.
The 3D screening segments with maximum open screening surface are quick and easy to change thanks to the modular design. The screen material of the Flip-Flow screen deck are secured without screws and without disturbing edges. This permits a quick change of the screen mats and an optimum product flow on the screening elements.

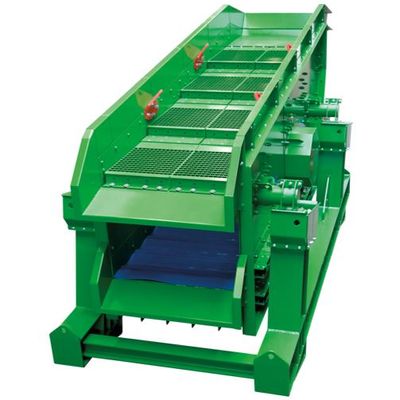

This vibrating screen machine is carried out as a circular vibrating screen and is driven by an imbalance shaft drive with standard three-phase AC motor.
The sub-frame compensates the residual vibrations of the screen. The stationary cover or the alternative cover that also vibrates can be opened without using tools and ensures simple as well as quick access to the screening segments.
- Nearly blockage-free screening in the upper and lower deck thanks to tried and tested 3D and Flip-Flow technology.
- The 3D screening segments guarantee correct grain size with no long pieces or extraneous material for the tension shaft screen on the lower deck.
- The Flip-Flow screen with screwless mounted screen mats avoids unnecessary cleaning.
- This combination of 2 system solutions in 1 machine enables you to make enormous savings on conveying equipment, steel structures and space.
