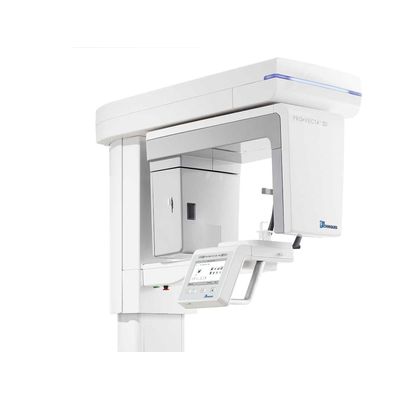

ProVecta Prime - 3D X-ray Images System
Taking diagnostics to the next level ProVecta 3D Prime combines diagnostic flexibility, ease of use and lower radiation dose. The ProVecta 3D Prime generates a unique 130mm x 85mm jaw-shaped anatomically adapted volume that encompasses all treatment areas without imaging non-relevant anatomy.
Most popular related searches
X-ray imaging
X-ray imaging system
laser alignment
3D scanning
radiation dose
alignment laser
laser scanning
See All That You Need To See
- 3D & 2D X-ray images with exceptional image quality
- The anatomically adapted jaw-shaped 3D image includes all dentition, including the third molar area
- 50 x 50 mm volumes in 80 or 120 μm Voxel size
- Highest resolution CsI flat panel sensor – creates brilliant, high-quality 3D & 2D images from one sensor, no swapping, no complications
Ideal Imaging Volumes | Easy Positioning | High Image Quality
- In addition to the standard adult 130 x 85 volume, the ProVecta 3D Prime offers child size and 10 additional 50 x 50 volumes
- Five each for the upper jaw & lower jaw
- Indications include endodontic and implant procedures
- The smaller 50 x 50 volumes can be specified at either 80 or 120 μm Voxel size to further increase clarity and accuracy
- Reconstruction algorithms allow 3D volumes to be rendered and displayed in the shortest time possible to maximize clinical workflow
Digital Implant Workflow with VisionX and SICAT
- Provecta 3D Prime, VisionX, and SICAT Implant – Your partners for simple, fast and accurate implant planning
- User-friendly, intuitive implant planning
- Seamless integration from the SICAT Suite into VisionX
- Open interface: DICOM, STL
- Chairside drilling template production possible
- Implant planning with SICAT Implant 2.0.20 now possible
- Click here to visit the VisionX webpage to learn more
Maximize Your Diagnostic Capabilities
- Innovative 7” touchscreen provides clear text & symbols to guide you through all functions
- Integration available with exocad & SICAT for implant planning and surgical guide designs
- Simplified patient positioning & overall imaging time thanks to double laser alignment for 3D scans & triple laser alignment for 2D scans
- Clearly verify implant, root or jaw fractures, hyperplasia or dysplasia needs
- Includes new state of the art and powerful VisionX software with implant visualization
- VisionX features three different 3D views (Panoramic, TSA, MPR)
- Clearly identify and mark the mandibular nerve canal
- Easily measure anatomical structures & export of 3D DICOM data
ProVecta 3D Prime covers the dental region of all patients
- 1,020 patients were examined in a study from Dr Johannes Krause*
- The study shows that a volume with a height of 85 mm and diameter of 110 mm is required for 100% coverage of the dental region
- With a volume of e.g. 80 x 80 mm, this means that only around 1.4% of all patients can be covered in full
- By contrast, the adapted, jaw-shaped volume of the ProVecta 3D Prime covers the dental region of all patients
*Source and graphic bottom right: Dissertation conclusions, Dr Johannes Krause, Charité – Universitätsmedizin Berlin, ‘Investigations into the required field of view for imaging 3D diagnostics in dental medicine’, 1 January 2013
