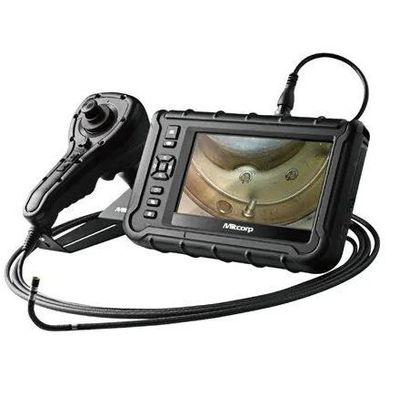

USA-Borescopes - Model 2000J-4-1500DV -3m Length Joystick Articulation – 4mm Dual-View Videoscope

With our HD dual view insertion probe, the USA2000J-4-1500DV videoscope offers all-new real-time sharpness, brightness, and manual exposure features. These assist consumers in obtaining the finest image quality in settings with strong contrast. One press on the 7″ touchscreen display allows you to switch between both cameras without needing to install a sideview tip. The new tungsten braid tubes increase the durability and allow it to withstand the toughest inspection applications.

• USA2000J-4-1500DV - 1.5m Length
  • 7″ Touchscreen Color Monitor
  • 3.9mm Diameter
  • 1.5 meter tungsten working length
  • Dual View HD Camera Lens (Forward and 90° to the side)
  • Joystick Articulation
  • Picture/Video/Audio Recording
  • Adjustable LED Lighting
  • Freeze Function
  • Light Boost Function
  • Negative Function
  • WiFi Enabled
  • Text Function
  • Advanced File Management Function
  • Heavy Duty Rolling Case
• USA2000J-4-3000DV - 3m Length

  • 7″ Touchscreen Color Monitor
  • 3.9mm Diameter
  • 3 meter tungsten working length
  • Dual View HD Camera Lens (Forward and 90° to the side)
  • Joystick Articulation
  • Picture/Video/Audio Recording
  • Adjustable LED Lighting
  • Freeze Function
  • Light Boost Function
  • Negative Function
  • WiFi Enabled
  • Text Function
  • Advanced File Management Function
  • Heavy Duty Rolling Case
• Expanded Specifications

• Display: 7″ LCD, Resolution 1024×600

• Power Supply:

  • AC Adapter: 100V~240V, 12V 2.5A, 50-60Hz
  • Battery: Rechargeable Li Battery 3.6V 900mAH; approximate operation time: 5 hours; charging time: 4 hours

• Video Output:

  • HDMI: TYPE D; HDMI 1.4 transmitter with 3D format and CEC support
  • USB: USB TYPE C, supporting USB full-speed and high-speed data transmission
  • Wi-Fi: IEEE802.11B/G/N

• Operating Temperature:

  • With battery power: 0~40ºC
  • With AC Adapter power: 0~35ºC

• Drop Resistance: 1m

• Relative Humidity: Max 95% non-condensing

• Dust Proof/Water Proof: IP57

• Insert Tubes Interchangeability: 6.0mm HD series; 3.9mm series
• Articulation Probe Specifications

  • Joystick Console Dimensions (WxDxH): 139.4 x 193 x 84.2mm (w/o SR and insert tubes)
  • Net Weight: 2m: 700g / 3m: 866g (approximately)
  • Joystick Console Buttons: Brightness+; Brightness -; Snapshot/Record
  • Lock and Move: Lock/unlock switch on console
  • Probe Head Diameter: 4.0mm
  • Probe Length: 1.5m or 3m
  • Probe Head Material: Stainless steel
  • Probe Material: Tungsten braid
  • Probe Head Length: 21.6mm
  • Direction of View: Front view
  • Field of View (FOV): 120º
  • Depth of Field (DOF): 5mm~100mm
  • Illumination: Front/Side LEDs
  • Articulation Angle (up/down/left/right): ≥ 120º

  Operating Temperature:

  • In air: -10~100ºC
  • In water: 10~30ºC

  Dust Proof/Water Proof

  • Joystick console: IP54
  • Insert Tube: under water 1m for 30 minutes

• Relative Humidity: Max 95% non-condensing

• Liquid Resistance: Operable when exposed to machine oil, light oil or 5% saline solution
• Software Features

  • Image Features: Digital zoon 3X, 10 steps brightness control
  • Sharpness Control: Clarity On/Off
  • Annotation: 10 text annotation (24 characters)
  • Timestamp/Watermark: for snapshot/video recording (on/off)
  • Image Management: User define pic / video folder available
  • On-Screen Display Functions: Light boost, light off, mirror, compare, wireless, particle free, dual view, light direction, negative, auto white balance
  • White Balance: Manual adjustment (default, warm, cold, custom)
• Recording Management Specifications

  • Storage Media: SDHC, up to 32G
  • Overlay: YY/MM/DD h:m, battery capacity
  • Thumbnail Image Display: 9 grids album mode

  Still Image:

  • Resolution: 1600×1600
  • Recording Format: .jpg

  Video:

  • Resolution: 800×800
  • Recording Format: .mov / H.264
  • Audio Input: Built-in microphone (on/off)

• Frame Rate: 30FPS
• Accessory Specifications

  • HDMI Cable (AV-out): 1.8m, HDMI 1.4a, D TYPE
  • USB Cable (data transfer): 1m, TYPE C to standard TYPE A
  • USB Charging Cable: 1m, USB-DC jack (for power bank)
  • SD Card: 16G
  • DC Power Adapter: 100V~240V, 12V 2.5A 50~60 Hz
  • Interchangeable Side View Tip: 6.0mm
  • Shoulder Strap: Polyester
  • Hand Strap: Polyester
  • Sun Visor: Steel/Plastic
  • Ground Wire: 3m with DC jack / PC in / clamp
  • Insulation Cap: Ø20mm, 90mm rubber

  Rigid Sleeve:

  • Grip Material: Rubber/aluminum/plastic
  • Tube Material: Stainless steel
  • OD: 6mm / ID: 5mm protection ring; OD 8mm extension joint ring; OD 10mm

  Trolley Case: HDPE EVA with storage reel

• Weight: 20 lbs
