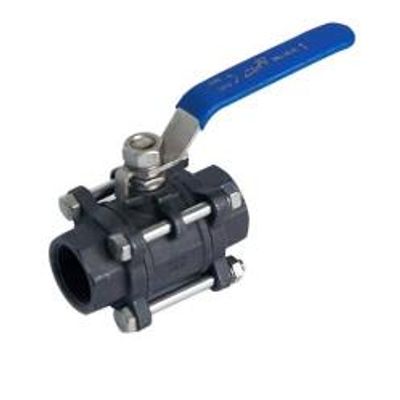

STV - Model Q11F-1000WOG-DN25-WCB -3PC Carbon Steel Ball Valve
3 Piece Ball Valve is a fully maintainable three piece, full bore ball valve;,providing a cost-effective solution for ‘shut-off’ and isolation of low temperature steam duty and medium flows.
Most popular related searches
ball valve
3-piece ball valve
full bore ball valve
pneumatic actuator
corrosive liquid
corrosion inspection
electric actuator
A general purpose ball valve that’s reliable. Stainless Steel body and Carbon Filled PTFE seat.
Features a blow-out proof stem and insulated grip, lockable lever handle.
- Stainless Steel CF8M 316 Body
- Screwed BSP, Socket Weld, Butt Weld or NPT
- Sizes: 1/4″ to 4″
- Temperature range: -20 °C to +200°C
- Operating pressure: 1000 PSI (1/4″ to 2″) and 800 PSI (2 1/2″ to 4″)
- Movement: 90° turn
STV Valve Technology Group Co., Ltd is a professional leader China 3pc wcb ball valve with threaded connection,3 Piece Carbon Steel A216 WCB Ball Valve, 3pc Wcb Ball Valve,3-Piece Ball Valve Manufacturer with high quality and competitive price.
- Working pressure: 1.6Mp,2.5Mp
- ISO-5211 Mounting pad for easy automation.
- Anti-static device.Fire safe design available,
- Blow-out proof Stem.
- Suitable media: water, oil, Gas and some corrosive liquids.
- Investment Casting.
- Inspection & Testing: API 598.
- Manual,pneumatic,electric operated avaible.
- Pneumatic actuator: double action &single action is available.
- Thread:NPT&BSPT &BSP
- Temperature Range:-40°C~150°C
- Low operation Torque.
