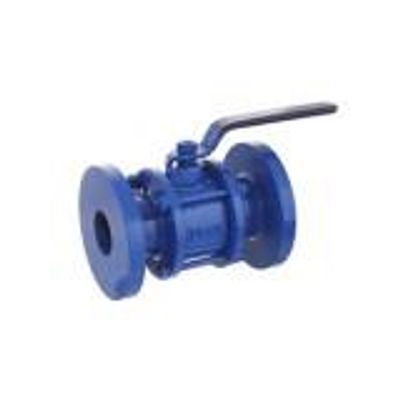

Kartar - Model K-802 -3pc Design Cast Iron Ball Valve (Flanged)
Paper & Pulp Industry, Waste & Effluent Treatment Plants, Water Treatment, Chemical & Sugar Industry, Fire Fighting, Drilling Rigs, Heating & Air Conditioning, Cooling Water Circulation, Compressed Air, Civil Constructions & numerous other.
Most popular related searches
ball valve
cooling water circulation
water treatment chemicals
effluent treatment plant
water treatment plant chemical
industrial wastewater treatment plant
industrial waste treatment
drilling rig
effluent treatment
industrial waste
- 15mm to 100mm in Flanged type 3pc design
- Can be installed upto 200 degrees centigrade temperature & 35 bar pressure
- Indigenously manufactured stainless steel mirror finished balls with 100% accuracy
- Blowout proof stem
- Gland packing can be replaced under pressure
- Design reference IS:9890 & ANSI B16.1
- Mounting flange for actuator as per ISO:5211 can also be provided
- Available in Cast Iron, Ductile, Cast Steel & Stainless Steel
- Body : 22 Bar (Hydrostatically); 10 Bar (Air)
- Seat : 16 Bar (Hydrostatically); 7 Bar (Air)
- 1 Bar = 0.1 MPa = 1.019 Kg/cm² = 14.50 PSI
- Flange Dimensions are as per ANSI B 16.1 but they can be supplied in any dimensions or standards
