Youyi - Model Q41F-16P/25P/40P/64P -3PC Type Ball Valve With Flange

• Nominal pressure: 1.6 / 2.5 / 4.0 / 6.3 Mpa
• Strength test:  PT2.4 / 3.75 / 6.0 / 9.45 Mpa
• Seal test: 1.76 / 2.75 / 4.4 / 6.93 Mpa
• The seal test: 1.76 / 2.75 / 4.4 / 6.93 Mpa
• Gas seal test: 0.6Mpa

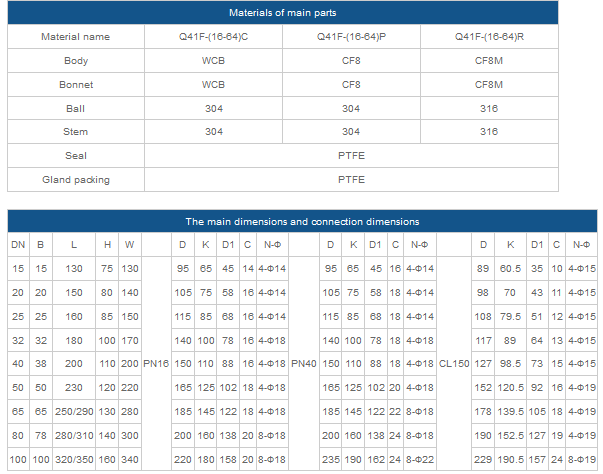

• Valve body material:  WCB(C) / CF8 (P) / CF3 (PL) / CF8M (R) / CF3M (RL)
• Suitable medium: water / steam / oil products / nitric acid / acetic acid
• Suitable temperature: -29?-180?

Ball valve, opening and closing parts (ball) driven by the valve stem, and around the ball valve axis for rotary movement of the valve. Can be used for fluid regulation and control, Ball valves are generally installed horizontally in the pipeline

By structure:

Floating ball valve, fixed ball valve, V-ball valve, three-way ball valve, manual ball valve, pneumatic ball valve, electric ball valve, welding ball valve and so on.

• Low fluid resistance and small volume.
• Tight and reliable, good seal.
• Convenient operation, quick opening and closing.
• Simple structure, convenient maintenance.
• Wide range of application, high vacuum or high pressure can be applied.
