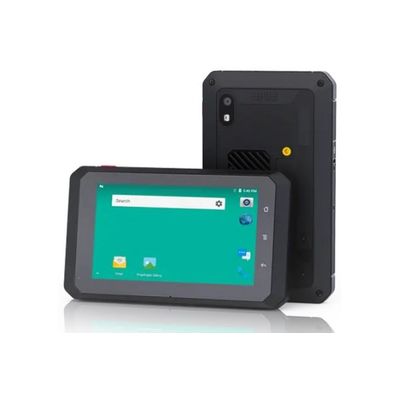

3Rtablet - Model VT-5 -Smart Android Tablet for Fleet Management

Convenient installation
The tablet with small, thin and light design, it isconvenient for end user quickly install andremove the tablet from tablet mount.

Stable and reliable CPU
VT-5 powered by Qualcomm CPU with industrial grade components on board to ensure that the product with good quality and high performance in field.

High-precision GPS positioning
VT-5 tablet supports the GPS positioning system. High precise position and excellent data communications realize tracking your car anywhere and anytime.

Rich communication
The small 5-inch tablet integrated with 4G, WI-FI, Bluetooth wireless communication. It is suitable for fleet management application and other smart control.

ISO-7637-II
Compliant with the automotive product ISO 7637-II standard Transient Voltage Protection, can withstand up to 174V 300ms car surge impact. Wide voltage power supply design, DC input supports 8-36V.

Wide operating temperature range
VT-5 support to work in wide range of operating temperature for outdoor environment, it supports the temperature range of 10°C ~65°C with reliable performance for fleet management or smart agricultural control.

Rich IO Interfaces
All-in one cable design makes the tablet operation stability in high vibration environment. VT-5 with power, RS232, RS485, GPIO, ACC and extensible interfaces, makes the tablet well applied in different telematics solutions.

System

• CPU : Qualcomm Cortex-A7 32-bit Quad-core processor, 1.1GHz
• GPU : Adreno 304
• Operating System : Android 7.1
• RAM : 2GB
• Storage : 16GB
• Storage Expansion : Micro SD 64GB

Functional module

• LCD : 5 Inch 854*480 300 nits
• Touchscreen : Multi-point Capacitive Touch Screen
• Camera (Optional) : Rear: 8MP (optional)
• Sound : Integrated microphone*1
• Integrated speaker 1W*1
• Interfaces(On Tablet) : SIM card/Micro SD/Mini USB/Ear Jack
• Sensors : Acceleration sensors, Ambient light sensor, Compass

Environment

• Operating Temperature : -10°C ~ 65°C (14°F ~ 149°F)
• Storage Temperature : -20°C ~ 70°C (-4°F ~ 158°F)

Communication

• Bluetooth : 4.2 BLE
• WLAN : 802.11a/b/g/n/ac; 2.4GHz&5GHz
• Mobile Broadband
• (North America Version) : LTE FDD: B2/B4/B5/B7/B12/B13/B25/B26
• WCDMA: B1/B2/B4/B5/B8
• GSM: 850/1900MHz
• Mobile Broadband
• (EU Version) : LTE FDD: B1/B3/B5/B7/B8/B20
• LTE TDD: B38/B40/B41
• WCDMA: B1/B5/B8
• GSM: 850/900/1800/1900MHz
• GNSS : GPS, GLONASS
• NFC (Optional) : Supports Type A, B, FeliCa, ISO15693

Physical Characteristics

• Power : DC 8-36V (ISO 7637-II compliant)
• Physical Dimensions (WxHxD) : 152×84.2×18.5mm
• Weight : 450g
