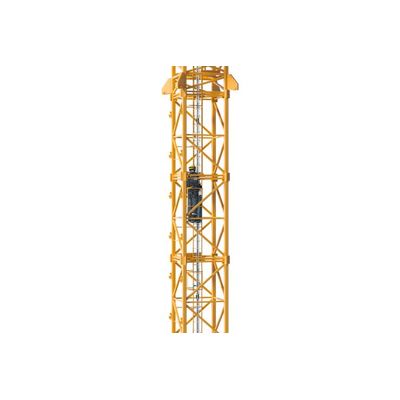

3S Lift - Tower Climber

10 safety features allow people working at height

• Dual Independent Fall Protection (Car Fall Arrester and Operator Fall Arrester)
• Automatic operation system
• Power-loss braking system
• Overload protection system
• Two-hand switch control system
• Manual descent function
• Upper & lower limit switch
• Low power function
• Acousto-optic alarm
• Collapsible footboards

Customizable to adapt to individual customer requirements or working scenarios

Tower Climber can be applied in various industries, such as tower cranes, wind turbine tower, high-voltage power transmission tower, cooling tower, warehouse storage, Refinery, Grain Silo, and bridge tower inspections etc.

Safety and efficiency when working at height

• Operator Fall Arrester : Operator fall arrester is connected to the guide rail and full body harness. When accidents happen, fall arrester locks inside the guide rail immediately, to prevent serious injury.
• Car Fall Arrester : The Car Fall Arrester is located on the lift’s car and runs inside the guide rail. It locks immediately in case of a fall, keeping the car in place and preventing it from falling.
• Manual descent function : In case of sudden power failure, the operator can operate the manual descent lever to descend the car safely and steadily.
• Overload protection system : Should an overload occur, the Tower Climber will sound an alarm and the power will instantly be cut off, stopping the lift in place. The Climber will not start again until the overload is corrected.

Two-handle start-up switch
To use the Tower Climber, the operator must press and hold the switches on both handles simultaneously. If the operator releases either switch, the system stops immediately.

Remote operation system
The Tower Climber can be conveniently sent up and down without an operator at the push of a button. This allows the operator uptower to send the Climber down to a colleague at the bottom.

Top and bottom limit and ultimate limit protection
Thanks to the top and bottom limit switches, the Climber will stop automatically at the top and bottom of the tower. Additional safety is provided by the mechanical ultimate limit protection at the top and bottom.

Low battery protection function
When the battery is less than 15%, it allows the car to travel down only, but only descent.

Audible and visual alert while running
When the Tower Climber is in use, a light and an audible alarm will ensure other operators along the pathway are alerted to the approaching lift.

Collapsible footboards
The collapsible footboards enable rapid evacuation in case of emergency.

Tower Climber

• Weight : 70 kg
• Rated load : 150 kg
• Speed : 18 m/min (2 minutes to reach the top of a 40 m crane)
• Distance with one full battery charge : ≤1500 m (40 round trips for a 40 m crane)
• Protection level : IP65
• Operating temperature range : -20°C-+55°C
• Wind speed : ≤13 m/s
• Service life : 10 years
• Power adapter : Adapt to regional outlet
