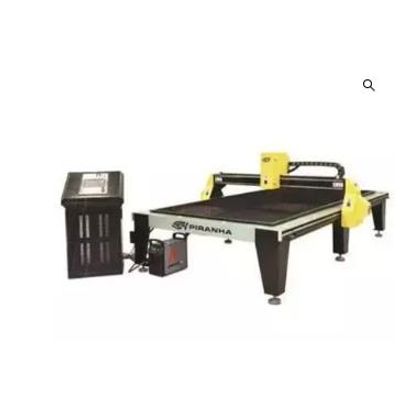

Piranha - Model B Series -4×4 Plasma Table
The Piranha B-Series Plasma Table is perfect for your hobby to light industrial cutting needs. This table retains a lot of the high end features found on the C-Series table and only is short some of the things you don’t need when looking at lighter duty cutting cycles.
Most popular related searches
rack and pinion
hybrid stepper motor
water table
dust collector
welding table
water collection
wedge welding machine
- Model:
- Piranha B404
- Cutting Area:
- 4’ x 4’
- Machine Size:
- 82”L x 92”W x 60”H
- Machine Weight:
- 1,300 lbs
- Rugged Construction – Simple and rugged bolted table with high accuracy linear guides and bearings. Machine is assembled complete at the factory
- Dual Side Drive – gantry driven on both sides for maximum stability
- CNC Control with 10.4” High resolution color LCD monitor, shape library with 20 configurable shapes, 8MB memory & USB interface
- Stepper motors and drives – Stepper motors on both X-axis and Y-axis with a maximum traverse speed of 8000mm/min.
- Water table slag collection – eliminates need for dust collector.
- MicroStep Programmable Torch Height Control – controls torch height automatically
- Breakaway Torch Mounting – protects the torch from inadvertent part tip-ups
- ProNEST® 2019 LT Programming System – 2D CAD drawing, DXF importing, integrated shape library, drag and drop nesting.
- Maximum Rapid Speed: 314 IPM
- CNC Control: Starfire
- Frame and Bridge Construction: Fabricated machine table, Welded steel bridge
- Drive Motors: X-axis – Two Stepper Motors, Y-axis – Stepper Motor, Torch Height Control – Stepper Motor
- Drive System: X-axis – Rack and Pinion each side, Y-axis – Rack and Pinion Z-axis – Ball Screw
- Torch Control: Arc Voltage with Initial Height Sensing
- Torch Protection: Pneumatic Breakaway
- Powermax 45XP: 1/2” (12mm) Production / 1/2” (12mm) Maximum (mild steel)
- Powermax 65 SmartSYNC: 5/8” (16mm) Production / 5/8” (16mm) Maximum (mild steel)
- Powermax 85 SmartSYNC: 3/4” (20mm) Production / 3/4” (20mm) Maximum (mild steel)
- Powermax 105 SmartSYNC: 3/4” (20mm) Production / 7/8” (22mm) Maximum (mild steel)
- Powermax 125: 3/4” (20mm) Production / 1” (25mm) Maximum (mild steel)
