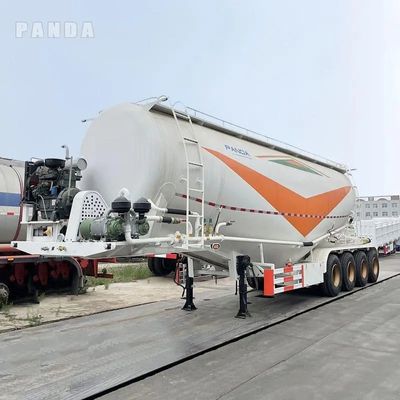

Panda Mech - 4 Ax Bulk Cement Trailer

1. High-strength wear-resistant steel: the tank body is made of high-strength and wear-resistant steel, which can ensure its long service life than ordinary material.
2. All the welding is perfect for ensuring high safety and no air leak: Special welding machine to weld the tank body from one side but forms smooth, sturdy, and uniform welds on both sides.
3. The Latest flow structure increases load capacity, lowers gravity center, fast discharging, and a small number of residual materials. residual volume less than 50kg, and the discharge speed up to 1.53cbm/min.
4. The pipeline system is fitted with a suitable auxiliary blower and anti-wear device to realize a smoother unloading process and faster unloading speed.
5. Adopt the domestic and foreign famous brand accessories and parts, such as which engine, Bohai air compressor, and air compressor, that ensure its durability, and save operation and repair costs.
6. Cement semi trailers frames using high-strength steel materials, light dead-weight, and ensuring their resistance to twisting forces, shock, and bump meet load requirements on different roads.

Brand: Panda Mech 60 ton cement tank trailers
Bulk trailer type: V type
Bulk trailer capacity: 60 ton
Bulk trailer length: 9.5-12.5 meter
Engine: WeiCai Deutz diesel moto
Compressor: SK 12m3
Manhole Cover: 2 to 4 sets 500mm diameter
Discharging Valve: 4″ disc valve
Dimensions: 10800*2500*3500 mm (optional)
Tank Material: 5mm or 6mm high strength steel
Suspension: Mechanical suspension or Air suspension
Axle: 3/4 axle, 13,16,20 ton axles, BPW or SAF
Tire: 12R22.5, 385/65R22.5, 13R22.5, 12.00R24, 315/80R22.5
Bulk trailer parts: Pneumatic handrail, famous brand engine, axle, tire, semi-meter pipe, Valves, manhole cover, pneumatic trailer blower, bulk trailer wire, lights, bulk trailer tubs, bulk trailer wire, dry bulk trailer light
