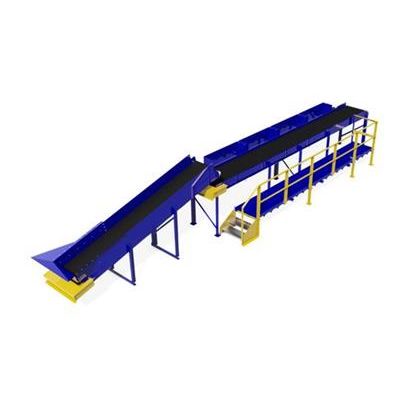

Tuffman - Model TS-T-1003-00-1 -4-Bin Mini Sorting Station - Excellent for plastics, papers and other light recyclable waste

System Specifications for Tuffman® 3-Bin “Mini” Sorting Station

• Bed constructed of 11 gauge carbon steel plate
• 30″ overall belt width, 32″ overall conveyor width
• 6″ x 32″ lagged head pulleys
• 6″ x 32″ self-cleaning tail pulleys
• Feed conveyor is 20′ long
• Sorting table is 25′ long
• Both conveyors have 150 solid woven PVC belt
• Each conveyor is powered by a 2 hp, 480 V, 3-phase electric motor
• Each conveyor has a 40:1 gear reducer
• Each conveyor has a Variable Frequency Drive, rheostatic speed controls and start/stop for operator
• 60 Hz power input
• Sorting table equipped with emergency control cable accessible by each sorter
• 3 (three) sets of 3″ x 3″ x 1/4″ angle iron legs
• Removable hopper on feed conveyor
• Sorting conveyor has sides with ≈ 4″ above sorting belt

System Options for Tuffman® 3-Bin “Mini” Sorting Station

• Crossbelt magnet
• Magnetic head pulley
• Customized leg heights and spacings, conveyor width, belt type
• Hydraulic drive
• Bag breaker and trommel screen options
• Vibratory Screen or Feeder options
• Portable or stationary generator options
• Right angle feed for additional price
• Reinforced structure for light construction and demolition debris
• Available in a variety of different voltage inputs
