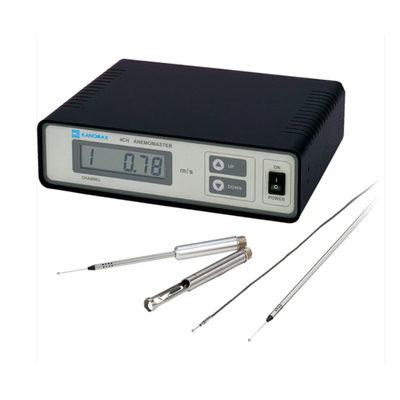

Applied-Physics - Model 1570 -4-Channel Anemometer

• Research-grade airflow measuring instrument designed for high performance and precision
• When coupled with our highly accurate probes this four-channel anemometer provides highly accurate and reliable data readings
• It features LCD display that reveals the data from each channel
• 0 optional air velocity probes available
• Simultaneously measure 4 channels of air velocity
• RS232C output to your company computer allows for easy data analysis
• Analog output allows for easy and seamless integration into your system

• Ventilation monitoring for energy efficient building
• Evaluate cooling efficiency in the electronic device
• Aerodynamics research
• Production control
• Product development

Main Unit Specifications

• Display Resolution: 0.01 m/s (@ range of 0 to 9.99m/s), 0.1 m/s (@ 10 m/s or more)
• Response Time: Display: 0.3 second
• Sampling: 0.1 second
• Output: 0.1 second
• Analog Output: 0 to 5 V
• Interface: RS-232C
• Operation Temperature: 41 to 104°F (5 to 40°C) with no condensation
• Storage Temperature Range: 14 to 122°F (-10 to 50°C) with no condensation
• Dimensions: D 7.8 x W 10.2 x H 2.8 inches (200 x 260 x 70 mm)
• Weight: 5.7 lbs (2.6 kg)
• Power Supply: AC 85 to 276 V, 50/60Hz
• What’s Included: Meter, operation manual, RS-232C cable, power cord, fuse

• Uni-Directional Probe (V): Model 0962-00
• Uni-Directional Probe (V): Model 0963-00
• Omni-Directional Probe (V): Model 0965-00
• Omni-Directional Probe (V): Model 0965-01
• Miniature Omni-Directional Probe (V): Model 0965-03
• Miniature Omni-Directional Probe (V): Model 0965-04
• Miniature Omni-Directional Probe (V): Model 0965-07
• Miniature Omni-Directional Probe (V): Model 0965-08
• Omni-Directional Probe (V): Model 0965-09
• Omni-Directional Probe (V): Model 0965-10
• AC Adapter: Model 6332-02
• 11mm Probe Protector: Model 6521-30
• 4.6mm Probe Protector: Model 1500-03
• 2M 1-Channel Probe Cable (V): Model 1504-02
• 5M 1-Channel Probe Cable (V): Model 1504-03
• 10M 1-Channel Probe Cable (V): Model 1504-04
• 20M 1-Channel Probe Cable (V): Model 1504-05
• 30M 1-Channel Probe Cable (V): Model 1504-06
