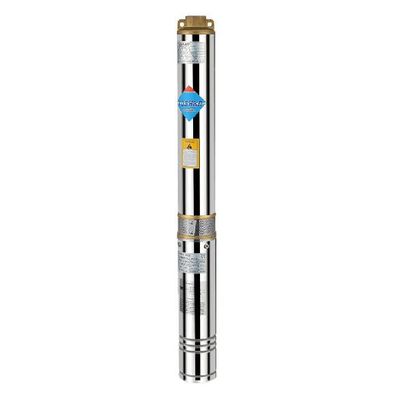

Bowei - Model STM2 -4" Deep Well Submersible Pump
ldentification Code: 4STM2-6. 4:Well diameter: 4". ST: submersible pump model. M: Single phase motor(three phase without M). 2: Capacity(m3/h). 6:Stage.
Most popular related searches
submersible pump
deep well submersible pump
water supply
deep well
4 `submersible well pump
deep well pump
submersible deep well pump
submersible well pump
well pumping
well pump
- For water supply from wells or reservoir
- For domestic use, for civil and industrial application
- For garden use and irrigation
- Suitable fluids
- Clear ,free from solid or abrasive substances
- Chemically neutral and close to the characteristics of water
- Performance
- Speed range:2900rpm
- Fluid temperature range:- 10°C ~40°C
- Max.Working pressure:40 bar
- Ambient Temperature
- Permissible up to40°C
Power
- Single phase:1- -240V/50Hz,
- three-phase:380V-415V/50Hz
Motor
- Degree of protection:IP68
- Insulation class: B
- Construction Materials
- Casing both of pump and motor, pump shaft:stainless steel
- AISI304
- Outlet and Inlet:bronze
- Impeller and diffuser, non-return vale:thermoplastic
- resin PPO
- Control switch, waterproof glue.
