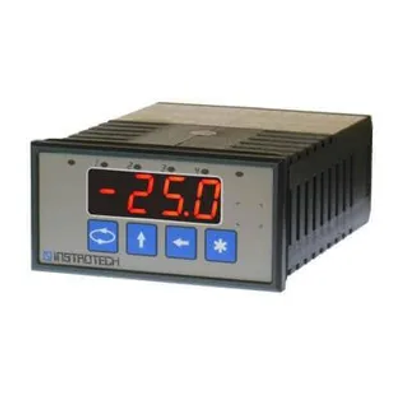

Instrotech - Model 4001 -4 Digit LED Universal Programmable Indicator
Model 4001 is a 4 digit LED Universal Programmable Indicator and may be applied to most process variables with analog and digital inputs. This high accuracy, high-quality panel meter is designed for accurate measurement and display of pressure, level, flow, frequency, DC voltages or currents, counting and speed. Options include linearisation, analogue or serial output and up to 4 alarm setpoints. The display and analog output is rangeable from the front pushbuttons. Excitation is standard and is link selectable for 2-wire or 3-wire transmitters, encoders and potentiometer input. This instrument meets EMC and EMI and Low Voltage directives.
Most popular related searches
- 0 - 20 mA
- 4 - 20 mA
- 0 - 200 mV
- 0 - 2 V
- 0 - 10 V (includes 0 - 5V and 1 - 5V)
- 0 - 20 V
- Potentiometer, 2 kΩ minimum
- 0.2 - 40,000 Hz, Counts or Frequency
- NPN, PNP, NAMUR or Contact Closure for Counts and Frequency
- DIN 48 x 96 enclosure 147mm deep
- -1999 to 9999 counts
- 14.2mm bright red LED display (optional green)
- 24 volt supply for 2 or 3 wire transmitters
- Low cost - high performance design
- Touch button ranging and setpoints
- Process inputs, frequency and counting functions
- Keypad lockout
- `Plug and Play` feature available with selected options
- Analog output option with programmable zero and span
- RS232 and RS485 communications option
