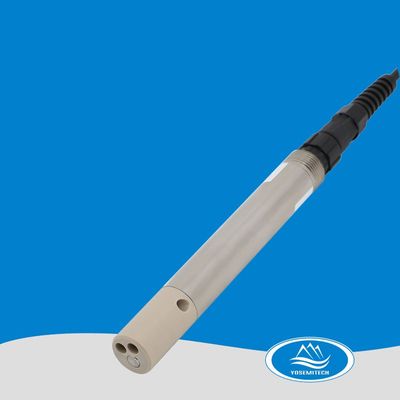

Yosemitech - Model Y521-A -4-Electrode Conductivity (Salinity) Sensor
Yosemitech’s four-electrode conductivity (salinity) sensor provides more accurate, stable measurement and wider measurement range than traditional two electrode design. It has no polarization effect and can deploy in long periods of time without frequent maintenance. It supports RS485 MODBUS protocols.
Most popular related searches
salinity monitoring
electrode conductivity sensor
conductivity sensor
four-electrode conductivity sensor
conductivity electrode
- The RS-485 output, Modbus protocol compatible
- No polarization effect, low maintenance
- Automatic temperature compensation
- Wide range and excellent interference rejection.
Name: Conductivity Sensor
- Model: Y521-A
- CT Range : 0.01~5mS/cm or 0.01~100mS/cm
- CT Accuracy: <1% or 0.01mS/cm
- SAL Range: 0~2.5ppt or 0~80ppt
- SAL Accuracy: ±0.05ppt or ±1ppt
- Principle: 4-Eclectrode
- Response Time: <10 sec
- HousingIP Rating : IP68
- Maximum Pressure: 6bar
- Body Materials: Ni+PEEK
- Housing Material: Titanium alloy
- Temperature Range: 0 ~ 50℃
- Sensor Interface: Supports RS-485, MODBUS protocol
- Power Requirements: DC 5~12V，currency<50mA

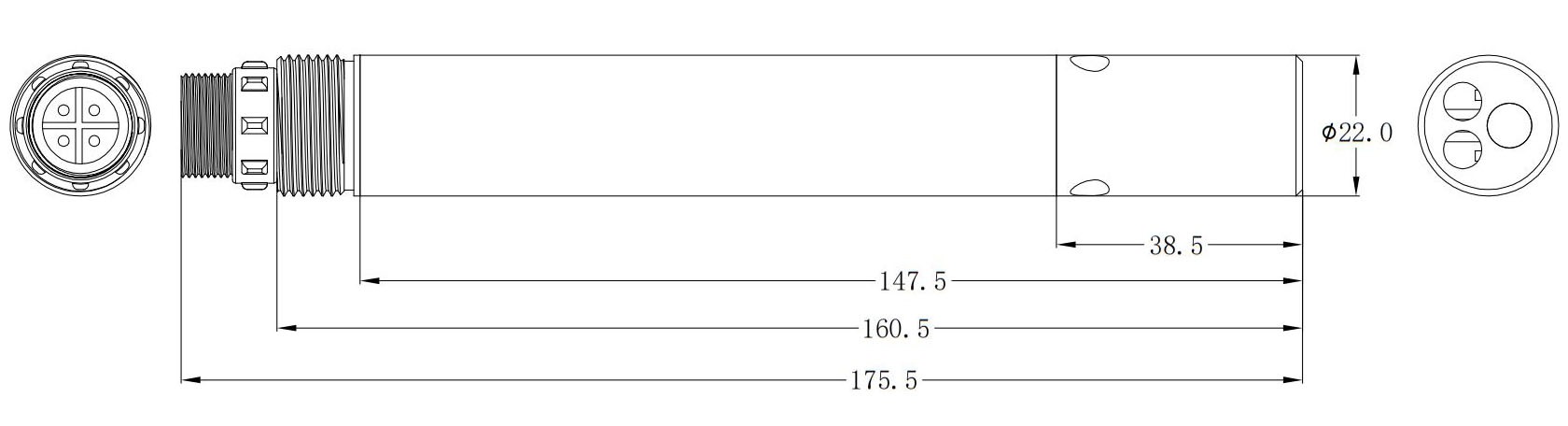

- Size: Φ22mm*175.5mm
- Probe cable length: 10m (default), customizable
- Calibration: one-point or two-points calibration
