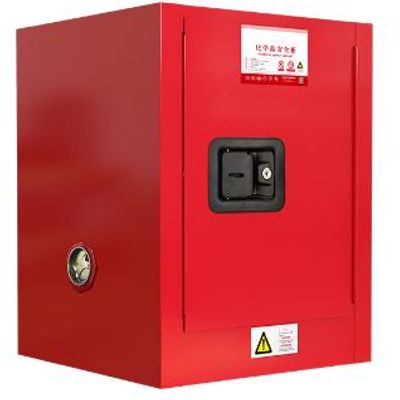

Bring-HS - Model BR004 -4 Gallon Chemical Safety Cabinet

In recent years, with the frequent occurrence of major and serious accidents, systemic safety risks have formed in the production, storage, transportation, use, abandonment, disposal and other links of hazardous chemicals, seriously damaging the safety of people`s lives and property, and affecting high-quality products. In the face of economic development and social stability, people have changed their minds when talking about "chemicals". The policy environment, social environment and public opinion environment have encountered more severe challenges than before. Hazardous chemical safety work urgently needs to be comprehensively strengthened!

From the analysis of policies and regulations released in recent years, the relevant regulatory documents for the storage of hazardous chemicals will be gradually updated and improved in the future, and starting from the issuance of Order 591 of the "Regulations on the Safety Management of Hazardous Chemicals" in 2011, including GB18265 issued in 2019 -In 2019, hazardous chemicals are required to be partitioned, classified, and stored in separate warehouses.

Product functions

The Borui chemical safety cabinet series takes compliance, environment, health, and safety as its product concepts, and solves the problem of improving the identification (color, label management) and storage orderliness of hazardous chemicals (color, label management) during the storage process of hazardous chemicals. Organized and classified) and storage method (isolation, separation, separate storage) adaptability; at the same time, it can facilitate firefighters to identify dangerous goods in the event of a fire; it has fire prevention and overflow control to reduce fire risks and ensure rescue time when a fire occurs. ; Convenient for accidental storage or use within the site, the principle of proximity improves work efficiency.

The products have passed ISO9001 quality management system certification, ISO14001 environmental management system certification, OHSAS18001 occupational health and safety management system certification, EU CE and other related certifications. The application industries include education and scientific research, inspection and quarantine, medical and health, food and pharmaceutical, chemical and chemical engineering, environmental safety, and national defense. Military industry and many other fields.

Product selection

1. Fan: There is a built-in fan on the top of the cabinet, which automatically draws out the air in the cabinet and realizes ventilation in the cabinet;
2. Time control switch: Automatically control the switching time of the fan in the cabinet according to time periods, and regularly control the air circulation in the cabinet;
3. V-shaped reinforced laminate: galvanized material, V-shaped reinforced structure, effective load-bearing up to 150kg;
4. 3M reflective label: Strong reflective effect, high temperature resistance, non-blistering, and can achieve safety warning protective effects day or night;
5. Electronic code lock: LCD display electronic code lock, realizing double lock control;
6. Mobile casters: The cabinet is equipped with polypropylene mobile casters to facilitate the movement and transfer of the cabinet;
7. Self-closing door device: It can effectively control the door closing sequence to ensure that the door is in a normally closed state. It is equipped with a fuse limit device. When the outside temperature continues to be 70°C, it will automatically disconnect and the door will automatically close to ensure the safety of the items in the cabinet;
8. Time control + temperature and humidity alarm: It can realize real-time monitoring of the temperature and humidity in the cabinet, and automatically alarm when the temperature and humidity exceed the set temperature; it can also automatically control the switch time of the fan in the cabinet according to the time period, and regularly control the air circulation in the cabinet;
9. Vibration alarm: generates an alarm when the center of the cabinet moves, prevents theft, and prevents items in the cabinet from tipping due to movement;
10. Smoke alarm: When smoke is generated in the cabinet, it will automatically monitor and alarm;
11. PP tray: Corrosion-resistant polypropylene tray, with laminate, can store acid and alkali chemicals;
12. PP acid-base box or reagent turnover box:
13. The PP acid-base box is made of polypropylene and can be customized according to the size of the reagent bottle, and can store acid-base chemicals;
14. The reagent turnover box is made of yellow PE material and is molded at one time. Please refer to the product manual for the dimensions of the reagent bottles.

Product use and maintenance

• Classification: Classify chemicals according to their properties. Do not mix and store chemicals that are incompatible, interact with each other, or may react violently;
• Specifications: Select the specifications of the storage equipment according to the specifications of the storage items, the storage area of the shelves, and the height of the distance between the shelves;
• Storage requirements for shelves: the force must be uniform and the load-bearing capacity of the shelves must be fully considered. Over-limit storage is strictly prohibited;
• Cabinet storage environment: It needs to be warm in winter and cool in summer, dry, light-proof, and easy to ventilate. The surrounding environment should be away from fire sources, heat sources, power sources, and no sparks.
• When dripping, running, popping, leaking, etc. occur in the cabinet, take personal protection in strict accordance with the SDS requirements and handle it promptly;
• Keep the cabinet clean and tidy, and the cabinet door must be closed when not in use.

1. All double-layer fireproof steel plates are constructed with a 38mm insulation layer between the two layers of steel plates, which can effectively isolate the heat source;
2. High-quality cold-rolled steel plates with a thickness of ≥1.0mm are spot welded, with longer service life and better fire resistance;
3. Use double GA locks and three-point linkage door locks (mechanical anti-theft locks comply with the relevant regulations of GA/T 73), which can ensure complete closing without turning the handle, maximize fire safety, and realize double lock control;
4. The piano-style hinge closes smoothly and can open and close 180 degrees easily;
5. The cabinet door is equipped with dual keys (key-specific locks and non-passable opening) to achieve double-lock security management for two people;
6. The 50mm high leak-proof tank prevents accidental liquid from spilling;
7. Professional and standardized warning labels are obvious;
8. Double ventilation holes equipped with anti-fire protection devices are purposefully placed at the bottom and its opposite top;
9. The unique anti-spill layer can be freely adjusted up and down, with a load-bearing capacity of 100kg;
10. Both the inside and outside of the cabinet are sprayed with epoxy resin electrostatic spraying to maintain a high finish and minimize the impact of corrosion and moisture;
11. In strict accordance with OSHA regulations, the cabinet is equipped with an electrostatic grounding conduction port to facilitate the connection of electrostatic grounding wires.
