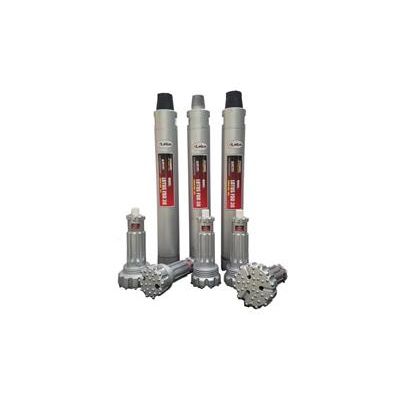

Lotus - Model FF4 (Mission 40) -4 Inch DTH Hammer
4” DTH Hammer, with Top connection Threads 2 3/8” API – IF PIN, Shank Type – Lotus FF 4 / Mach 44. SUITABLE BUTTON BITS : Flat face(Optional – Concave Face). Dia – 4” ( 102 mm) , Dia – 4 ½” ( 115 mm). Dia – 5” ( 127 mm), Dia – 6” ( 152 mm). Dia – 6 ½” ( 165 mm).
Most popular related searches
- Hammer to Drill a hole of dia 115 – 140 mm (4 1/2”– 5 1/2”).
- S47S4 is a valveless type hammer designed for high performance at low operating air pressures
- S4 bit has a strong robust design to withstand heavy duty application and it does not use foot valves which reduces the possibility of hammer failure.
- S47S4 Hammer maximizes energy output and reduces service requirements
- Wear sleeve is not reversible
- Three Start threads on Top sub and Drive sub ensure easy coupling/uncoupling of hammer.
- All critical internal components are heat treated under strict control to maximize tool longevity.
- An overall cost-effective and user friendly tool for use in the most demanding conditions.
