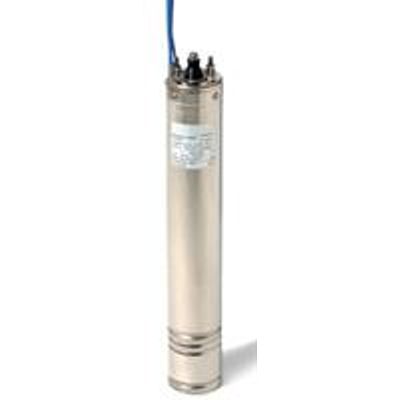

Soggia - Model 4M -4 Inch Oil Filled Rewindable Submersible Motors
FromSoggia Srl
4" oil filled rewindable submersible motors. Elevated starting torque. Mechanical compactness, reliability, superior performance together with the most complete range of products are the principal features marking the 4M motors.
Most popular related searches
rewindable submersible motor
oil filled submersible motor
submersible motor
thrust ball bearing
borehole pump
borehole pumping
axial thrust ball bearing
4” submersible motor
borehole motor
borehole
- Motor casing, shaft and bottom end made in Stainless Steel AISI 304
- High resistance upper bracket of casting AISI 304
- Axial and radial thrust ball bearings
- Graphite-Ceramic standard mechanical seal
- Special cooling fluid for a better lubricant effect to increase life of moving parts. The liquid with its high thermal capacity gives the motor superior overload capabilities
- Oversized compensation diaphragm and sand slinger protection
- Insulation class F - Protection IP 58
- Removable cable connector
- NEMA standard coupling dimensions
- Easy to disassemble and to re-wind
- Maximum voltage fluctuation admissible versus nominal rated voltage: ± 10%
- Maximum water temperature: 35°C with at least 0,08 m/sec of water flow speed
- Maximum motor starting per hour: 30
- Axial thrust:
- 1500N from 0,37 kW to 2,2 kW
- 2500N from 3,0 kW to 5,5 kW
- 5000N from 3,0 kW to 5,5 kW
- 4400N from 7,5 kW
- Maximum immersion depth: 150 mt
- Horizontal operating position: admitted up to 5,5 kW
