WPS - Model CP -4 Inch Stainless Steel Submersible Pumps

The 4”WPS®-CP offers the following features:

• pump entirely made out of stainless steel and fits in 4” or larger drilled wells
• constant pressure with two set pressures possible
• capacity from 0.2 to 8m³/h and a maximum head of 140m
• motor rating up ti 2kW, 90Hz
• single phase supply to the controller
• incorporated jam free check valve
• dry-running protection
• high efficiency of pump and motor
• excellent resistance to wear
• soft start
• overvoltage and undervoltage protection
• overload protection
• overtemperature protection
• variable speed
• second set-pressure possible

The 4” WPS-®CP pump is fitted with a three phase 230V Well Pumps motor. The 4” WPS®-CP controller needs a single-phase supply and stransforms it to a three-phase current to the motor. The controller is equipped with a frequency drive and performs a constant pressure of the flow through a variable speed of the pump. As a consequence, the pump can be set to operate any duty point in the range between the pump min. and max. performance curves. In case a pump fault, an alarm will be indicated on the LCD screen of the 4” WPS®-CP controller.

For specific working conditions, please contact Well Pumps S.A.

The 4” WPS®-CP pump is sold as a kit and consists of the following elements:

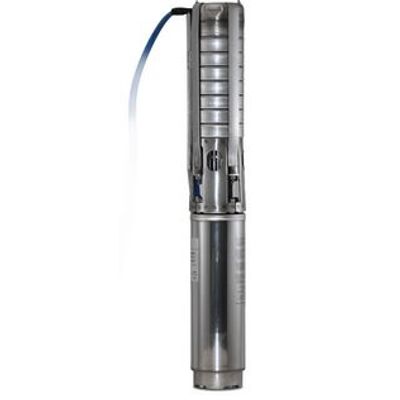

• a 4” submersible pump WPS® entirely made of stainless steel
• a WPS® high speed submersible motor able to run at a variable frequency up to 90Hz
• a WPS®-CP constant pressure controller including a variable speed drive, a flow detection and a pressure sensor
• a pressure vessel of 8 liter
