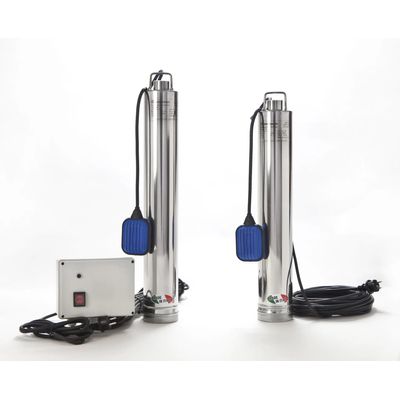

CS Waterpumps - Model R4 -4" Multi-Stage Monoblock Submersible Electric Pump

FromCS Waterpumps srl

SHARE

USE: Multi-stage submersible electric pumps designed to solve all problems of conveying clean water with temperatures that do not exceed 35 ° C.

Most popular related searches

multistage submersible electric pump

submersible electric pump

multistage submersible pump

submersible pump

electric submersible pump

multistage pump

hydraulic testing

4` submersible electric pump

Particularly suitable for irrigation, pressurization systems, emptying tanks and flooded rooms. Industrial and civil uses in general.
The type of construction allows operation with a minimum level of water.
Manual or automatic operation with adjustable float.
In the single-phase version the condenser can be inserted inside the pump or supplied together with the external control panel.
Made of stainless steel, subjected to severe electrical and hydraulic tests. Max content of sand 60gr / metrocube. Max number of starts now 40.

Pump body, motor casing, handle, AISI 304 stainless steel intake grille;
Molded brass supports;
Impellers, diffusers and separators in glass-filled PPOm, each stage is complete with stainless steel wear ring;
Crankshaft in stainless steel AISI 430;
Mechanical seal in alumina graphite lubricated with oil;
On request in SILICIO CARBIDE;
Special lip seal for sand protection.

Asynchronous single phase V.230 50HZ or three-phase V.400 50HZ;
Other voltages and frequencies on request;
Insulation class F;
Internal cooling in mineral oil bath for non-polluting food use;
External cooling through pumped liquid;
Built-in thermal protection.
