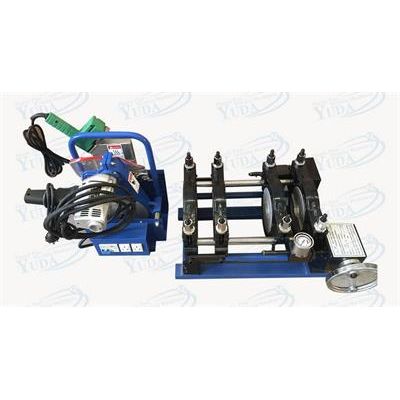

Yuda - Model RDHS160/50 -4 Rings Manual Butt Fusion Machine
RDHS160 manual butt fusion machine is suitable for butt fusion welding of plastic pipes and fittings made of PE.PP, and PVDF in construction site or workshop. Consists of basic frame, heating plate, planing tool, and support (for planing tool & heating plate).
Removable PTFE coated heating plate with separate temperature control system. Electric milling cutter with double cutting edge blades. Low starting pressure ensures reliable welding quality of small pipes. It is made of lightweight and high strength material; simple structure and easy to operate
Most popular related searches
digital temperature controller
plastic pipe
plastic piping
plastic piping fitting
plastic pipe fitting
pipe fitting
metal cutting blade
- Welding ranges: plastic pipes: 50mm — 160mm (50mm — 63mm — 75mm — 90mm — 110mm — 125mm — 140mm — 160mm)
- Ranges of application: PE, PPandPVDF
- Working voltage:—220V ±10%, 50Hz/60Hz
- Total power: 1.85 kW, including: planing tool: 0.85 kW, heating plate : 1.0 kW
- PTFE coated heating plate, adjustable temperature control knob, difference in surface temperature <t5°, handy operation.
- Environment temperature: —10° "-45°
- Whole machine consists of basic frame, heating plate, planing tool, and support (for planing tool & heating plate)
