ACTA - Model 30424-AR730505 -4-Screw Crusher - Reverse Filler Hopper for Gypsum Waste

SHARE

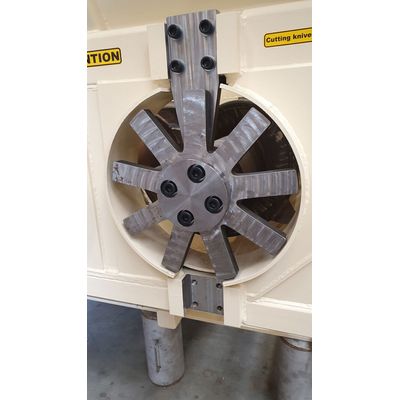

30424-AR730505 – ACTA 4-screw crusher, for processing gypsum waste. Features: Equipped with reverse hopper, loading from outlet side. Equipped with 9 fingers rotation knife + 1 fixed knife (changeable). Painted in customers required color. Reliable gear and motor setup with full control panel.

Most popular related searches

gypsum waste recycling

gypsum recycling

waste processing plant

industrial waste recycling

waste recycling

industrial recycling

Weight: 12.000 kg
Hopper inlet dim.: 2.850x2050mm.
Hopper volume. approx.: 6,5 m3

Outlet capacity: 6-10 ton/hour
All outlet capacities are approximated and depends on working conditions and type of material to be processed.
Please contact sales for ACTA for more exact information.

Screw speed: Approx. 12 rpm
Motor power: 4 x 18,5 kW
Electrical conn.: 3x400 V - 50 Hz
Prefuse (App.): 400 Amp

House: Bin
Industry Gypsum handling, Recycling, Waste handling
Surface treatment: Carbon steel – painted
Transported material: Gypsum
Product type: ACTA crusher
