Subline Srl
4” Submersible Multistage Centrifugal Pumps
FromSubline Srl
Submersible multistage centrifugal pumps for 4” wells, particularly suitable for water rising and distribution installations requiring very high pressures and flow rates.
Most popular related searches
multistage centrifugal pump
non-return check valve
centrifugal pumping
centrifugal pump
submersible centrifugal pump
stainless steel pump
multistage submersible pump
multistage pump
stainless steel flange
non-return valve
- Water plants and systems for residential and industrial use, for continuous or intermittent duty operation.
- Pressurizing system.
- Irrigation plants.

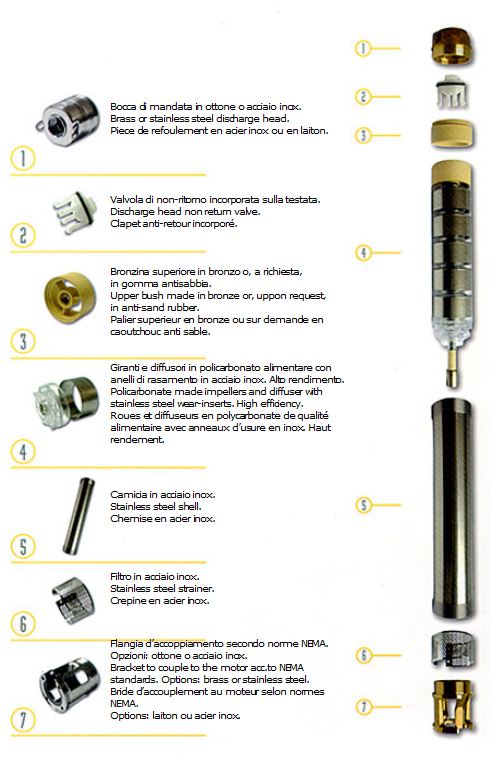

- Motor coupling flage and discharge head are made in brass (OT 58) or in stainless steel (AISI 304).
- Incorporated non-return check valve for all pump types in easily removable.
- Impellers and diffusers in non toxic plycarbonate (Lexan), diffusers body in stainless steel (AISI 304) for type 6 - 10 - 14 - 24.
- Shell, pump shaft, coupling, cable shield, suction screen and all screws are in stainless steel.
- Pump flanges for coupling with motors are made according to NEMA standards.
- Max ø pump 96 mm
