ASCO Valve, Inc.

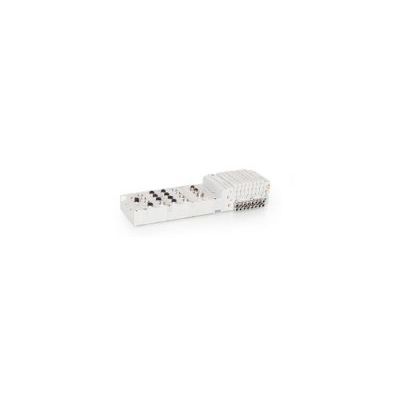

Numatics - Model 501 -4 Way Directional Control Valve
FromASCO Valve, Inc.
High flow rate 11mm pneumatic valve. 4 way solenoid air pilot actuated valves including double 3/2 function. Available in manifold with Fieldbus, compatible with all industrial protocols (DeviceNet, Profibus-DP) and leading Industrial Ethernet protocols (EtherNet/IP, EtherNet/IP DLR, Profinet).
Most popular related searches
directional control valve
pneumatic valve
life science
manifold valve
life science analysis
actuated valve
control valve
stainless steel plate magnet
pilot solenoid valve
life science diagnostics
- Port Sizes: M7 Threads, 1/4, 6mm and 4mm Tubing with Push-In Fittings
- 5 ported, 2 and 3 position, 4-way and double 3/2 rubber packed spool
- Flow Capacity: 0.46 Cv (460 l/min (ANR)
- Operating Pressure Range: Vacuum to 115 PSIG (Vacuum to 8 Bar)
- Pilot Pressure Range: 29 to 115 PSIG (2 to 8 Bar)
- Temperature Range (Ambient): 14 to 122 °F (- 10 to + 50 °C)
- Fieldbus Electronics and I/O Capable
- Voltage: 24 VDC +/- 10%
- Wattage: 0.8 W for DC Application
- Internal wiring with PCB only
- Simple conversion from internal to external pilot supply
- IP65 Certified
- Compatible with G3 and 580 Fieldbus Platforms
- Elimination of tubing and connections
- Adapter plate for direct mounting to cabinet walls
- Stainless steel or aluminum plate for 8, 12 or 16 station manifolds
- Shut of block for individual valve to be isolated from pressure supply during operation and repair
- Mid Station Supply Manifold block allows for multiple pressure zones (with blocking discs) or additional air supply to a manifold
