Evolution - 4 Wire Cryogenic RTD Probe for Temperature Measurement
The Evosensors 4 Wire Cryogenic RTD Probe is engineered for precise temperature measurement across a wide range of applications, particularly in cryogenic environments. Designed with stainless steel sheath options ranging from 1 to 6 inches and a diameter of 1/8 inch, this probe offers reliable and consistent performance for demanding conditions. It features a PFA insulated lead wire that can be configured in various lengths, starting from 3.3 feet (1 meter), ensuring flexibility for system integration. Operating efficiently within -320°F to 572°F (-200°C to 300°C), it is equipped with stripped end termination for secure connections. Its robust design and high tolerance to extreme temperatures make it suitable for industrial, scientific, and research applications where accurate temperature data is crucial.

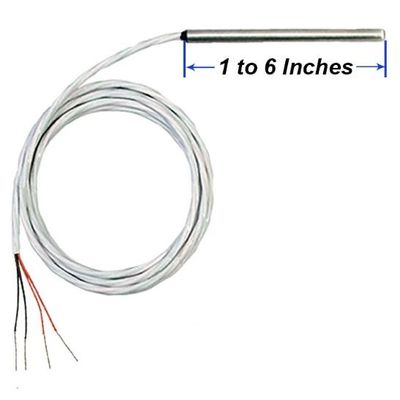

4 Wire Cryogenic RTD Probe 1 to 6 Inches Long 1/8" Diameter Stainless Steel Sheath with 3.3 ft (1 meter) and LONGER Lengths of PFA Lead Wire with Stripped End Termination
- Cryogenic Temperature Range is -320 to 572°F (-200 to 300°C)
- Pt100 (Platinum 100 ohm) RTD temperature sensing element in a 4 Wire design
- Probe Sheath is 1/8" (.125" or 3,2 mm) diameter 1 to 6 Inch Long 316 Grade Stainless Steel
- Wire Leads are 3.3ft (40 Inches or 1 meter) and LONGER PFA insulated with a temperature range of -450°F to 500°F (268°C to 260°C)
- Wire Construction is 4 conductor individually PFA insulated 26 gage stranded (7/34 - 7 strands of 34 gage) nickel plated copper and twisted with an outside PFA jacket measuring .095" (2.4 mm)
- Color Code is 2 Black and 2 Red
- Instrument Connection is stripped wire leads
- Industry and Applications - BioMedical, Laboratory, Refrigeration along with others with Very Low to Medium temperature requirements
- Evosensors Part Number: P4A-TBSX-125-PC-2-PFXX-96-STWL
- Location: C-6-19
