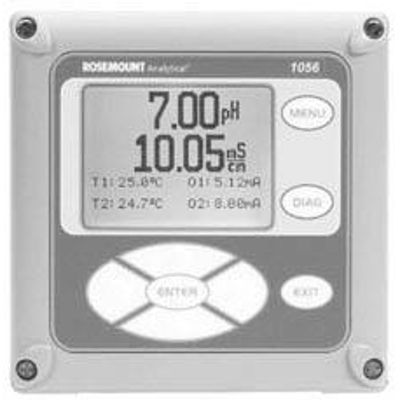

ASTI - Model 1056 -4-Wire Single, Dual or Triple Channel pH/ORP/ ISE/Conductivity Analyzer & Transmitter

SHARE

Chemically & Mechanically Resilient Polycarbonate NEMA 4X / CSA 4 IP65 Enclosure - Standard 1/2 DIN Cutout. 115/230 VAC & 24 VDC 4-Wire Power Operation Standard (With or Without Relays). Optional Dry Contact 5A Relays for alarm or simple on/off control functionality, 4 each. Available in any combination of Single or Dual Channel pH / ORP / ISE / Conductivity Configurations. Extremely cost effective solution to simple pH, ORP, ISE & Conductivity Analyzer / Transmitter / Controller Requirements.

Most popular related searches
pH/ORP/conductivity analyzer
pH/ORP/conductivity
conductivity analyzer
pH/ORP analyzer
conductivity transmitter
pH/ORP transmitter
ORP analyzer
pH analyzer
ORP transmitter
conductivity controller
  • Automatic Temperature Compensation via 100 or 1000 Ohm Platinum Temperature Compensation Element (Avaialble in Standard and ACCU-TEMP configurations)
  • Dual (2 each) Isolated & Independent 0-20 or 4-20 mA outputs for Signal and/or temperature standard, fully user configurable
  • Optional HART and ProfiBUS available for any mix of measurement channels
  • Large LCD Display with touch membrane keypad - Menu Driven Interface and Programming
  • Automatic Temperature Compensation from 0 to 150 °C (32 to 302 °F) for pH & ISE and 0 to 200 °C (32 to 392 °F) for Conductivity
