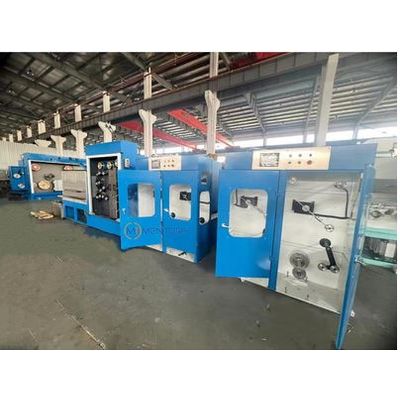

Mentors - Model SY-DT22/4 -4 Wires Multiwire Drawing Machine with Annealing
This Multi Wire Copper Wire Drawing Machine has four wires and is mainly used for drawing copper wire from 1.2mm to 0.18-0.42 mm wire.
Most popular related searches
- Wire quantity: 4 wires
- Max.Inlet wire: 1.2mm, outlet wire: 0.18-0.42mm
- Raw material: pure copper
- Machine Type: SY-DT22/4
- Drawing Wire No.: 4 Wires
- Max. Die No.: 22
- Max.Inlet Dia.(mm): 1.2
- Outlet Dia.(mm): 0.18-0.42
- Max.Drawing Speed.(m/s): 25
- Capstan: Ceramic coated or Zirconium
- Simultaneous drawing and annealing of 4 wires effectively ensures the uniformity of wire quality, which can effectively improve production efficiency, reduce production costs, and have high economic benefits.
- The annealing voltage is fully digitally controlled, automatically tracks the drawing machine speed, and is individually adjustable.
- Annealing door is made of aluminum alloy instead of casting aluminum, the life at least have three years.
- The pipes in the eye mold frame are sprayed for cooling and lubrication, which is convenient for cooling during threading; and movable water pipes are installed above the wire drawing capstans to lubricate and cool the capstans.
- Delivery time: 60-90 working days
- After-sell service: Engineer will be dispatched at needed. The buyer provides engineer`s round trip flight tickets, board and lodging, the security as well as each person of daily wage
- Guarantee: 12 months since shipping date(exclude easily wearing part)
