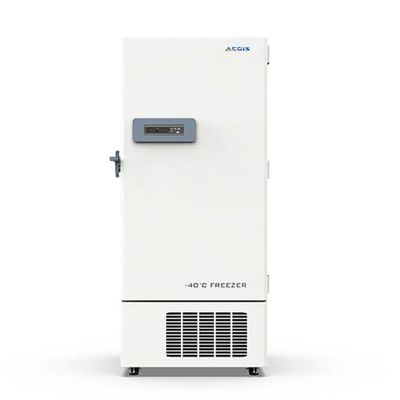

AEGIS - Model GL-FL-19M Glacier Series --40°C Low Temperature Freezer, 110V/60Hz
The GL-FL-19M Glacier Series -40°C Low Temperature Freezer, operating on 110V/60Hz, utilizes variable speed inverter technology for energy savings. It features an optimized refrigeration system with a high-efficiency inverter compressor designed to lower energy consumption significantly. The unit offers a spacious storage area with built-in evaporator and adjustable shelves that ensure excellent temperature uniformity, maintaining set points within +/- 3°C. Designed with environmental considerations, this freezer employs an HC refrigeration system that is free from chlorine and fluorine, aligning with eco-friendly standards. Its urethane foam insulation also complies with European ROHS regulations. This freezer is suitable for use in clinics, hospitals, and research facilities, offering reliable and efficient low-temperature storage solutions.
Energy saving with variable speed inverter technology
Optimized refrigeration system with a high efficiency inverter compressor to reduce energy consumption
Excellent temperature uniformity in a large storage space
Features built-in evaporator, large storage space, and adjustable shelf, providing faster temperature pulldown and a better temperature uniformity of set point +/- 3℃.
Environment Friendly
HC refrigeration system contains zero chlorine and fluorine. It does not harm the environment.
Urethane foam insulation complies with European ROHS regulation.
General Specifications
- Cabinet Type : Upright
- Capacity : 531 L / 18.75cu ft
- Internal Size(W*D*H) : 585*696*1266mm 23*27.4*49.8in
- External Size(W*D*H) : 930*1041*1947mm 36.6*40.9*76.6in
- Package Size(W*D*H) : 1035*1165*2145mm 40.7*45.8*84.4in
- NW/GW(Kgs) : 234/272
Performance :
- Temperature Range : -20 ~ -40 °C
- Ambient Temperature : 16 – 32°C
- Climate Class : N
- Cooling Performance : -40°C
- Controller : Microprocessor
- Display : Digital display
Refrigeration :
- Compressor : 1pc
- Cooling Method : Direct cooling/cold wall
- Defrost Mode : Manual
- Refrigerant : R507a
- Insulation Thickness(mm) : 130
Construction :
- External Material : High Quality Steel plates with spraying
- Inner Material : Galvanized steel sheet
- Shelves : 3
- Door Lock with Key : Yes
- Access Port : 2pcs. Ø 25 mm
- Casters : 4(2 leveling feet)
Alarm :
- Temperature : High/Low temperature,High ambient temperature
- Electrical : Power failure , Low battery
- System : Sensor error, Condenser cooling fa ilure,Door ajar，System failure,
- Main board communication error, Built-in data logger USB failure
Electrical :
- Power Supply(V/HZ) : 110/60
