Sentry Air Systems, Inc.

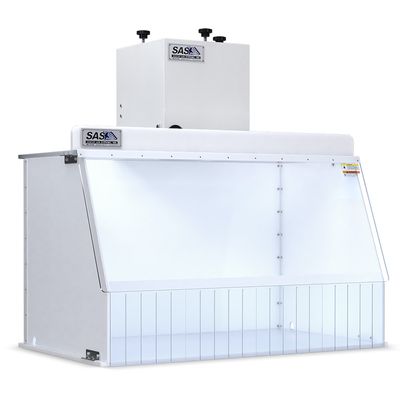

Sentry Air Systems - Model SS-340-DCH -40-inch Wide Ductless Fume Hood
The 40” Wide Ductless Fume Hood combines powerful air flow with a sturdy and compact enclosure for optimal respiratory and environmental protection. This fume hood helps protect the operator and environment from hazardous fumes or particulate generated from applications performed within the hood. The 40” Ductless Fume Hood’s powerful fan directs fumes into the filter chamber containing high quality filter media selected depending on the application.
Most popular related searches
ductless fume hood
fume hood
carbon filter
HEPA filter
magnehelic gauge
epoxy coating
spill tray
acid gas
hazardous fume
particulate generator
- Chemical fumes
- Pharmaceutical compounding
- Soldering applications
- Dust removal
- Biological applications
- Variety of applications requiring fume and dust removal
- Includes: variable speed controller (115V only), velometer, and LED light
- Optional: clear anti-static vinyl curtains, Magnehelic Gauge, hour counter, and spill tray
- Standard Sizes: 12”, 18”, 24”, 30”, 40”, 50”, 60”, and 70” (custom sizes available)
- Quiet operation
- Long filter life
- Simple, quick “no tool” filter change
- Portable and lightweight
- Reliable, low-maintenance operation
- Hood Dimensions (D x W x H)
- Outer: 24” x 42” x 25”
- Interior: 23.5” x 40” x 24”
- Access Area: 8” x 40”
- Hood Material
- Sides: 0.25” white acrylic
- Base: 0.5” white high density polyethylene
- Top: 0.5” clear polycarbonate
- Front Window: 0.25” clear polycarbonate
- Blower Dimensions: 15.5”L x 13” W x 14.5” H
- Blower Material: 16 Ga. carbon steel with polyester epoxy coating on all surfaces
- Weight: 115 lbs
- Air Volume (approximately): up to 350 CFM (varies with filter media)
- Inlet Velocities on High (approximately)
- Carbon Pre-filter + HEPA Filter – 130 FPM high, 25 FPM low
- Carbon Pre-filter + Heavy Duty Carbon Filter – 115 FPM high, 20 FPM low
- Electrical: 115/1/60, 2 amps; 220/1/50, 0.75 amps; 8’ grounded power cord with NEMA 5-15P plug
- Sound Level: 61 to 66 dba (low to high)
- Maximum Temperature: Operating temperature not to exceed 170° F
- Warranty: Limited two-year warranty from the date of shipment on defects due to materials or workmanship.
- Patent #: 5,843,197
- HEPA (up to 99.97% efficiency on particles down to 0.3 microns)
- ASHRAE (up to 95% efficiency on particles down to 0.5 microns)
- ULPA (up to 99.9995% efficiency on particles down to 0.12 microns)
- Activated Carbon
- Specialty-Blended Filter Media (i.e. acid gas, mercury, aldehyde, and ammonia)
