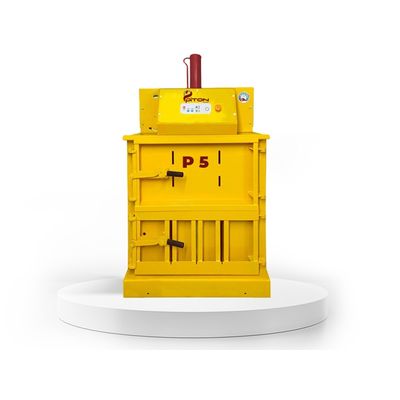

Piton - Model P5 (PTN40) -40 Kg Vertical Baler Press

• Among our vertical presses, the most useful and most efficient in terms of price and performance is the paper cardboard plastic press.
• Our vertical bale press machines comply with 100% OHS safety.
• Our machines work with 220 or 380 voltage.
• Hydraulic oil in our Vertical Presses is a gift from our company.
• We Have Stand by PLC and Motor Protection Systems.
• We have static and industrial paint systems.
• Our scrap bale presses are suitable for pressing paper, cardboard, nylon.
• Our machines have a 1-year warranty.
• Spare parts support is available for our vertical baling presses and we have services all over Turkey

Compressor Dimensions

• Height: 1,694 m
• Width: 0.718m
• Depth: 0.630 m
• Weight: 150kg
• Transport Height: 1.40 m
• Power Source: 220-240 V Single Phase
• Engine: 1.5 kW 13 Amp
• Compressor Power: Max. 5 Tons
• Noise Level: 72 dB

Baler Dimensions

• Height: 0.600 m
• Width: 0.535m
• Depth: 0.460 m
• Weight: 40 kg (depends on material used)
• Cycle Times: 20 sec

Loading Opening Dimensions:

• Height: 0.490 m
• Width: 0.535m
• Depth: 0.460 m
