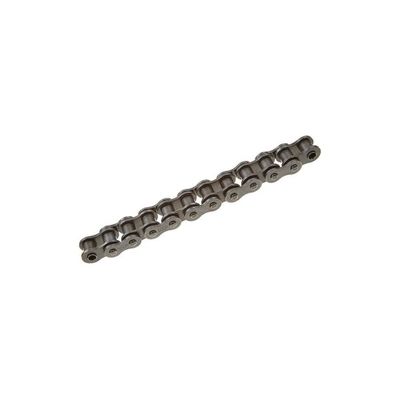

Nitro - Model RC40OR-1R-10FT -#40 O-Ring Roller Chain - 10ft Box
FromNitro Chain, LLC
40 o-ring roller chain is for drives where lubricating the roller chain is extremely difficult. Our #40 O-ring chain uses and o-ring between the two link plates, which seals lubricant into the "bearing" area of the chain. Another benefit is the o-ring keeps dust, dirt and other abrasive materials out. All o-ring roller chain should be lubricated periodically to prevent the o-ring from drying out and cracking.
Most popular related searches
- Pitch (P):1/2"
- Inner Width (b1):5/16"
- Roller Diameter (d1):0.312"
- Overall Width: (L):0.653"
- Pin Diameter (d2):0.156"
- Link Plate Height (h2):0.469"
- Link Plate Thickness (T):0.060"
- Average Tensile Strength:3,900 lbs
- Max Working Load:830 lbs
- No. Of Pitches/Links Per 10 Feet:240
- No. Of Connecting Links Included:1
- Manufactured To ANSI B29.1 Standards
- Manufactured From Quality Raw Materials
- Extended Life
- Solid Rollers
- Computer Precision Heat Treated
- Shot Peened
- Pre-Loaded (Pre-Stretched)
