420 - Model small-scale -Sawdust crusher

The working principle of the 420 wood crusher is mainly based on cutting and impact force, which applies cutting and impact force to the wood by rotating the blade or hammer, thereby decomposing the wood into smaller fragments or sawdust. Specifically, its working principle can be summarized into the following steps:
Raw material feeding: Place the wood to be processed into the feeding port of the crusher, and the wood enters the crushing chamber through the feeding device.
Crushing process: Blade cutting. In the crushing chamber, the motor drives the blades or hammers on the spindle to rotate at high speed, cutting the wood. Blades are usually designed to be sharp and wear-resistant to ensure cutting effectiveness.
Impact crushing: In addition to blade cutting, wood is also subjected to the impact force of hammers or blades, further crushing into smaller particles. This combination of cutting and impact breaks the fiber structure of wood, making granulation possible.
Multi stage crushing, some advanced wood crushers may include multiple crushing chambers, such as coarse crushing, medium crushing, and fine crushing, to improve the breadth of crushing and the uniformity of finished particle size.
Sieve filtration: After the crushing process, small sawdust will be filtered out through the sieve, while larger chunks will be left in the crushing chamber for further crushing until the desired particle size is achieved. The design and adjustment of the screen mesh are crucial for controlling the particle size of the finished product.
Collection and discharge: The sawdust filtered through the sieve will be discharged from the discharge port and can be directly collected or transported to other locations for utilization. At the same time, some devices are also equipped with wind conveying systems, which can transport the crushed wood chips to designated collection devices through wind power.

Main purpose:
Branch pruning: The 420 type shredder is particularly suitable for garden branch pruning, orchard branch pruning, and other scenarios, and can effectively handle waste such as trimmed branches and trunks.

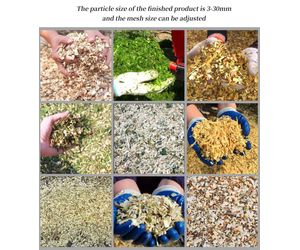

Wood chip processing: capable of crushing logs, branches, trunks, small trees, etc. with a diameter of less than or equal to 15cm, processing them into wood chips, widely used in edible mushroom cultivation, biomass fuel and other fields.
Wet material processing: This equipment also has efficient crushing ability for wet wood fiber materials, such as sugarcane and other wet materials in Guangxi region.

Zhengzhou Fude Machinery Equipment Co., Ltd. is a professional enterprise engaged in the research and development, production, and sales of wood crushers. Our production equipment includes: wood crusher, slicer, branch crusher, sawdust crusher, template crusher, biomass pellet machine, sawdust pellet production line, etc. We are committed to providing customers with efficient, stable, and reliable pre-sales and after-sales services.
