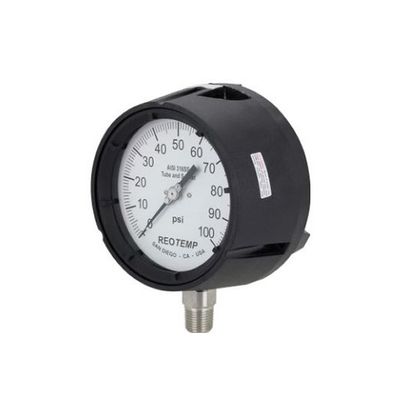

Reotemp - Model PT45P Services -4.5` Industrial Process Gauge
REOTEMP’s Series PT45P process gauge is designed to withstand corrosive atmospheres and media, pulsation and vibration; a very rugged gauge engineered for the process industries. The solid front and blowout back provides a high degree of user safety. Note: For highly-corrosive, high-temperature, or severe service applications a diaphragm seal is recommended.
Most popular related searches
process gauge
diaphragm sealing
laminated safety glass
safety glasses
cooling tower
pressure gauge
back safety
mounted cooling tower
industrial gauge
atmospheric corrosion
- Safety Pattern Design
- Solid Front/Blowout Back Safety Case
- All Stainless Steel Internal Parts
- Internal Overload and Underload Stops
- Field Fillable Case
- Micro-Adjustable Pointer with Floating Zero
- ASME B40.100 Design
- NACE MR-0175 and MR-0103 Compliant
- Accuracy : ±0.5%, Grade 2A (10k – 20k psi = 1% upscale, 2% downscale)
- Ambient Limits : -40°F/150°F
- Process Limits : -40°F/250°F
- Process Limits with Diaphragm Seal : -60°F/400°F (Direct Mount)*
- -110°F/750°F (Remote Mount or Cooling Tower)*
- *Exact limits depend on diaphragm seal and fill fluids.
- Wetted Materials : Tube: 316SS Seamless
- Socket: 316SS
- Lens : Tempered Safety Glass (Standard),
- Plastic or Laminated Safety Glass
- Other Materials : Case: Reinforced Thermoplastic (Phenolic) or 316SS
- Ring: Phenolic Turret Twist-Off or SS Twist-Off Bayonet
- Dial: White Aluminum, Black Letters, Case-to-Socket: O-Ring
- Fillable : Yes
- Restrictor Screw : Yes, removable.
- Maximum Working Pressure : Stable = 100%
- Momentary = 130% of scale
- Environmental Protection : NEMA 4X/IP65
- Weight : Phenolic (Dry) = 2.5 lbs
- Phenolic (Filled) = 3.5 lbs
- SS (Dry) = 2 lbs
- SS (Filled) = 3 lbs
