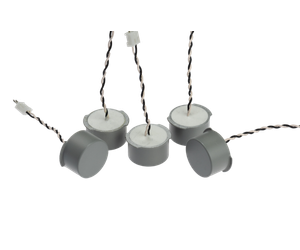

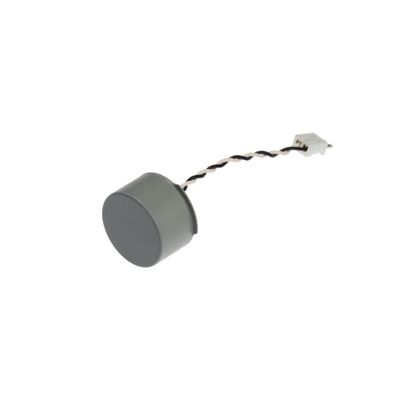

ISSR - Model ISU48-15.5TRAJ -48kHz Ultrasonic Transceiver for Car Reversing Collision Avoidance - Waterproof Design
Features: 48kHz transceiver integrated low-frequency ultrasonic ranging and reversing collision avoidance sensor core transducer Integrated Design: Transmitter and receiver in one unit High Sensitivity: Capable of detecting obstacles with a strong signal-to-noise ratio Wide Frequency Band: Operates efficiently at 48kHz Robust Construction: Waterproof and durable for various environments Lightweight and Compact: Easy to integrate into vehicles without added bulk
ISU48-15.5TRAJ
48kHz Ultrasonic Transceiver for Car Reversing Collision Avoidance - Waterproof Design
Ultrasonic Transducer, Car Safety, Collision Avoidance, Waterproof Sensor, High Sensitivity, Automotive Applications
View More Other Products
The ISU48-15.5TRAJ ultrasonic transceiver is engineered for precision in automotive applications, particularly serving as an advanced ultrasonic parking sensor for reversing collision avoidance systems. This reversing radar probe boasts an integrated design that combines both transmitting and receiving functionalities in a compact, waterproof housing. Operating at a frequency of 48 kHz, it delivers high sensitivity and an excellent signal-to-noise ratio, ensuring reliable obstacle detection expected from a premium parking ultrasonic sensor, even in challenging conditions.
Designed with a lightweight structure, the ISU48-15.5TRAJ facilitates seamless installation and integration in various commercial and passenger vehicles, offering a prudent solution for enhancing road safety. Its robustness against harsh environments makes it suitable for use in the automotive industry where reliability and performance of a reversing radar probe are paramount.
Test Item
Test Conditions
Test Standards
Remarks
Center Frequency (KHZ)
Room Temperature 25±3 (℃)
48±1
Frequency Scan Instrument
Capacitance (pF)
1KHZ; 25±3℃
1600±15%
LCR Digital Bridge
Angle (°)
Room Temperature 25±3 (℃), Probe height 60cm from ground, Distance 60cm to target (Φ75mm PVC pipe, height 1M), Test environment requires no obstacles within 2M in front of probe, test per Fig.1;
X-axis direction: 55±10(°), Y-axis direction: 50±10(°);
Main board No.: KM/K00648001;
Residual Vibration (ms)
Room Temperature 25±3 (℃), Simulated test mainboard, Reading as per Fig.2;
≤2.4;
Main board No.: KM/K00648002;
Echo Sensitivity (mV)
Room Temperature 25±3 (℃), Distance: 1.5m, Obstacle: Φ75mm*1000mm PVC pipe, Reading as per Fig.2;
Compared with lower limit samples (Reference value ≥450);
Main board No.: KM/K00648002;
Sensitivity (dB)
Transmit Frequency: (48±1)KHZ 0dB=10V/Pa;
-81;
Reference value;
Sound Pressure (dB)
Distance: 30cm, Input Voltage: 10Vrms 0dB=2x105Pa;
≥108;
Reference value;
Maximum Driving Voltage (Vp-p)
Pulse Width 0.8ms, Interval 60ms
150
Oscilloscope
Operating Temperature (℃)
-40～+80 (℃)
Qualified
High and Low Temperature Chamber
Storage Temperature (℃)
-40～+85 (℃)
Qualified
High and Low Temperature Chamber
Optimized for automotive reversing systems and safety robotics, this 48kHz ultrasonic transducer features a precision-engineered asymmetric beam (110° Horizontal / 45° Vertical). Its unique fan-shaped detection zone provides panoramic bumper coverage to eliminate side blind spots, while the narrow vertical angle effectively rejects ground clutter—preventing false alarms common in low-mounted sensors. With a blind zone reduced to just 20cm (≤1.2ms ringing time) and a rugged IP67 waterproof housing, it delivers reliable collision avoidance performance in rain, snow, or tight parking maneuvers.
