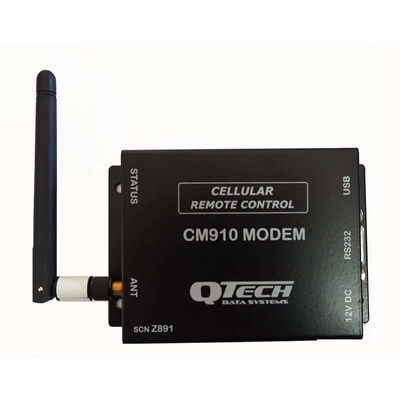

QTech - Model CM910 -4G Cellular Modem
The QTech CM910 Cellular Modem is a standalone 4G LTE cellular modem, suitable for mobile, industrial and general purpose communications applications. An ideal M2M platform providing for SMS and data connectivity via a Serial or USB (2.0) interface.
Most popular related searches
- 3G bands (MHz): B1(2100), B5(850), B8(900);
- 4G bands (MHz): B1(2100), B3(1800), B5(850), B8(900), B28(700).
- Built in UDP/TCP/FTP/SMTP stack.
- Operates with the Standard and extended AT command set.
- No static IP-address needed
- Low power consumption
- Low running costs and easy to install
- DATRAN XL4 Plus is CM910 aware
- Wide range of operating voltages from 9-24V DC
- Connectivity with all current New Zealand and Australian telecommunication companies
Electrical
- Operating Voltage: 12–24V DC
- Power Connector: 2.1mm DC Socket, centre pin positive
- Operating Current: ~14mA @ 12V, ~10mA @ 24V
- Antenna: 50 Ohms, SMA connector
Connectivity
- USB Port: Type B socket
- RS232 Port: DB9 female connector
- Operating Conditions: 0 – 70°C & <90% humidity, non-condensing
Physical
- Case Size: 112 x 75 x 25mm (Overall)
- Weight: 261 grams (with supplied aerial)
- Mounting Holes: Qty 4x M4 mounting holes at~102 x 50mm centres
General
- RSM SCN: Z891
- Modem specifications: 3G bands (MHz): B1(2100), B5(850), B8(900); 4G bands (MHz): B1(2100), B3(1800), B5(850), B8(900), B28(700).
