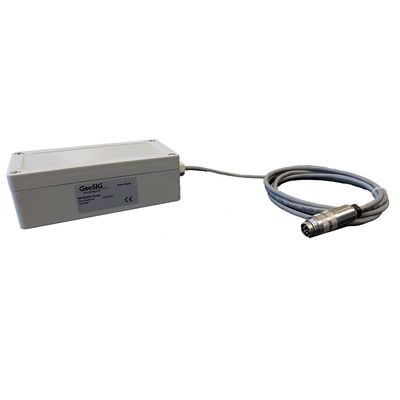

GeoSIG - Model GXX-4GE Series -4G Modem
The GXX-4GE series are 4G modems which provide a secure wireless connection using the 4G network infrastructure for high speed data communications. The GXX-4GE is a Multi - Band module solution with LTE - FDD / LTE - TDD and HSPA+ as well as GSM / GPRS / EDGE with up to 150 Mbps for downlink data transfer. The 4G modem can be delivered as an external module, connected to and powered directly from GMS series recorders. The unit is delivered with all necessary accessories and peripheral units such as the cabling, connectors, antenna, etc, as well as firmware & software, thus is ready to use out of the box together with the associated GeoSIG solution.
- Multi-Band LTE / HSPA+ and GSM / GPRS / EDGE
- High speed wireless network support
Functionality
- bands: B38 / B40 / B4 LTE - TDD B1 / B3 / B5 / B7 / B8 / B20 LTE - FDD B1 / B5 / B8 UMTS / HSDPA / HSPA+ 900 / 1800MHz GSM / GPRS / EDGE
- sim card: Supports 1.8 and 3 V SIM cards Standard SIM (25 mm x 15 mm)
Management
- configuration: Through GMS series
Data Transfer (maximum values)
- LTE CAT 4: 50 Mbps / 150 Mbps UL / DL
- HSPA+: 5.76 Mbps / 42 Mbps UL / DL
- UMTS: 384 Kbps UL / DL
- EDGE/GPRS: 85.60 Kbps UL / DL
Data type used depends on telecommunication operator / provider and data transfer capacity in the chosen network.
Power
- Powered directly from the GMS series
- Consumption:56 mA standby 140 mA Peak Tx
Dimensions
- GXX-4GUE: 80 mm x 160 mm x 60 mm
Weight
- GXX-4GUE: approx. 300 g incl. cables
Environmental Protection
- GXX-4GUE: IP65, optional IP66 / IP67
TEmperature
- operation: -30 to +80 °C
- storage: -40 to +85 °C
**Specifications subject to change without notice
