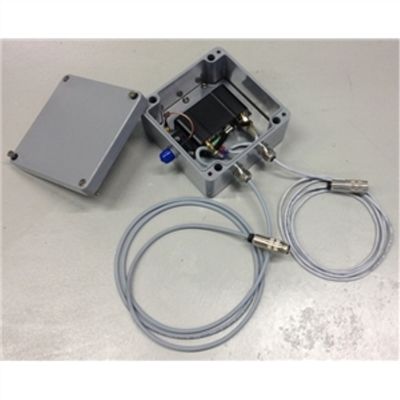

GeoSIG - Model GXX-4GMX Series -4G Router
FromGeoSIG Ltd
The GXX-4GM series are 4G routers which provide a secure wireless connection using the 4G network infrastructure for high speed data communications. The GXX-4GM is a Multi-Band module solution with HSPA as well as GSM/GPRS/EDGE with up to 7.2 Mbps for downlink data transfer. The 4G router can be delivered either as an external module, connected to and powered directly from GMSplus series recorders, or as stand-alone module for use with a computer or any other Ethernet compatible device. The unit is delivered with all necessary accessories and peripheral units such as the cabling, connectors, antenna, etc, as well as firmware & software, thus is ready to use out of the box together with the associated GeoSIG solution.
Most popular related searches
- HSPA & Quad Band GSM, upto 7.2 Mbps download
- 10/100 Ethernet and USB interface
- N-type connector for external antenna (GXX-4GM)
- High speed wireless network support
Functionality
- bands: HSPA & Quad Band GSM 850/1900/1700-2100 HSPA 850/900/1800/1900 MHz GSM/GPRS/EDGE
- output power: HSPA Class 3 (0.25W) GSM 850/900 MHz Class 4 (2W) GSM 1800/1900 MHz Class 1 (1W)
- SIM card: Supports 1.8 and 3 V SIM cards Mini SIM (25 mm x 15 mm)
- configuration: User-friendly Web GUI Wired and wireless network status Site survey test Firmware upgradeable SSH
- HSPA: 7.2 Mbps DL, 5.76 Mbps UL
- edge/gprs: Multi-Slot Class 12
- gxx-4gm: Powered directly from the GMSplus
- GXX-4GMPC: powered by external power supply
- input voltage: 7 – 30 VDC
- consumption: 95 mA average Ethernet (standby) 275 mA Peak Tx
- GXX-4GMPC: 160 mm x 160 mm x 91 mm
- GXX-4GM: 57 mm x 98 mm x 38 mm
- GXX-4GMPC: approx. 250 g excl. cables and accessories
- GXX-4GM: approx. 1’000 g incl. cables
- GXX-4GMPC: IP41
- GXX-4GM: IP66
- operation and storage: -40 to +85°C
