CMOS - Model IT-K3-04120 -4K Single Line Monochrome

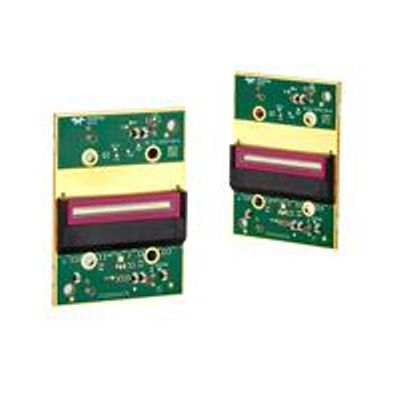

The IT-K3-04120 sensor is a high performance, digital, monochrome single line scan CMOS image sensor. The sensor is optimized for a high line rate and low noise, while providing high responsivity and high quantum efficiency (QE). The sensor is designed for ease-of-integration and uses FR4 packaging
The pixel features global shutter capability, 100% fill factor, and true correlated double sampling (CDS) for low noise.
FR4 packaging offers high signal integrity and simple interfacing for quick system integration. The interface consists of two 60-pin connectors, which contain input signals, such as EXSYNC (trigger), clocks and voltages, and output signals, such as data and strobe (s-LVDS). Access to the registers of the sensor is handled through a serial-peripheral interface (SPI), plus the temperature of the sensor can be monitored.
The two 60-pin connectors on the IT-K3 share the same electrical and mechanical interface with the entire IT-K and IT-L sensor series, whereby the two 60-pin connectors and four mounting holes are positioned identically relative to one another as well as having pin compatibility.
- High speed: 70 kHz
- 100% fill factor
- Low noise
- Ease of integration
- Common electrical and mechanical interface
