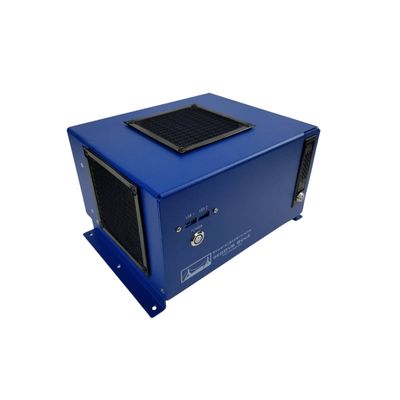

Model geoDVR Gen4 -4K UHD / HD Multi-Camera Geospatial Full Motion Video Recorder
The all-new geoDVR™ Gen4 is the most powerful multi-channel geospatial full motion video recorder and moving map system in the geoDVR lineup designed to capture continuously georeferenced videos files and metadata from today’s modern 4K Ultra HD and high-definition camera sensors. The geoDVR Gen4 incorporates the latest high-performance computer components and processors for an unparalleled operator experience in demanding airborne, vehicle and marine data collection environments. Like it’s predecessors, the geoDVR Gen4 features our industry-leading, integrated user interface, offering the ultimate flexibility for configuring in-mission, multi-channel video recording and live moving maps with single or multi-monitor operator consoles.
When paired with compatible gyro-stabilized gimbal cameras on aerial platforms, the geoDVR Gen4 can also log and present location metadata to showing aircraft location along with the camera target frame center and field of view on the ground in real-time and post-mission. This can be accomplished through embedded KLV specifications such as MISB 0601 / STANAG 4609 as well as the Remote GeoSystems Camera Target Footprint (CTF) protocol.
The geoDVR Gen4 is more than a geospatial digital video recorder – it’s also a powerful mission computer with a number of optional mapping and metadata modules designed to meet a variety of professional real-time and post-mission survey, inspection and surveillance project requirements.
Geospatial Data and Mapping Features for Multi-channel 4K UHD & HD Video Recording System from Airborne, Vehicle and Marine Survey Platforms.
Record full motion video (FMV) with continuous GPS data, including support for synchronized GPX files, MISB/STANAG-spec embedded metadata and Camera Target Footprint (CTF) data.
The geoDVR Gen4 can be configured to record up from up to 4 video camera sensors on a single platform, with support for 1 - 4K plus 3 - HD or 4 - HD video channels.
Record geospatial video from most any camera, including multi-sensor gyro-stabilized gimbals, fixed-mount and handheld video cameras with BNC & Ethernet connections.
Use handheld switch or touchscreen monitor to log points of interest (POI) with geotagged still images captured from video and optional descriptions.
Customize the layout and sizing of live video previews, map windows and other interface components, save up to 4 unique profiles and settings for different missions.
The geoDVR Gen4 includes built in push-to-talk (PPT) capabilities allowing operators to only record observer and/or cabin audio comments in the video files when the button is engaged.
Users can choose between Highest, High, Medium and Low video recording quality or configure Custom settings per channel including bitrate, compression encoding location and more.
High-capacity solid state drives (SSD) offer longer recording times, flexible in-field data management and write speeds up to 30x faster than CF & SD cards.
Geotagged video files, live streams and still images can be loaded for interactive map-based viewing, geo-editing, analysis and reporting in our LineVision software - no post-processing required!
Upgrade your geoDVR system with optional modules for additional in-mission situational awareness, camera/sensor data collection and post-mission mapping and asset management.
