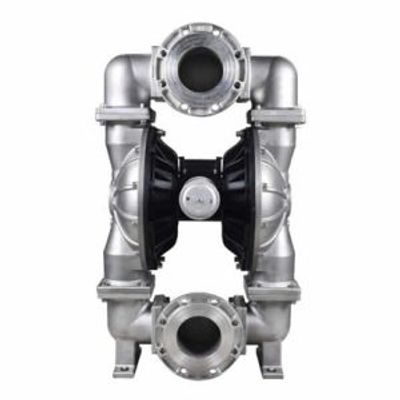

Saiken - 5" Air-Operated Diaphragm Pump

5″ Air-Operated Diaphragm Pump Max Capacity 1041LPM

5 inch (125mm) Air operated double diaphragm Pump Max Capacity 275GPM,Max head 84m, Air inlet and outlet:3/4 inch,construction stainless steel/plastic/Aluminium alloy/PP/ductile iron/PVDF.

Saiken Pumps a AODD Pump Manufacturers in China, china suppliers exporters, Buy Air Operated Double Diaphragm Pumps, AODD Pump,For best price and good quality, contact us now!

• 5 inch (125 mm) inlet/outlet
• Delivery up to 275 gpm (1041lpm)
• Easy-to-service air valve and ball checks

• Quick and easy assembly and disassembly design
• Easy to service air valve and ball checks
• Split manifold option to pump multiple fluids without mixing
• Every pump is tested prior to shipping

• Maximum Fluid Flow: 275 gpm (1041 l/min)
• Maximum Fluid Discharge Pressure: 120 psi (8 bars, 0.84 MPa)
• Maximum Size Pumpable Solids: 3/8 inch (9.4 mm)
• Fluid Displacement Per Cycle: 2.0g (7.6 litres)
• Air inlet and outlet caliber: 3/4 inch
