BWB - Model XP -5 Channel Flame Photometer

Ready to use straight out of the box!

General Purpose Flame Photometer!

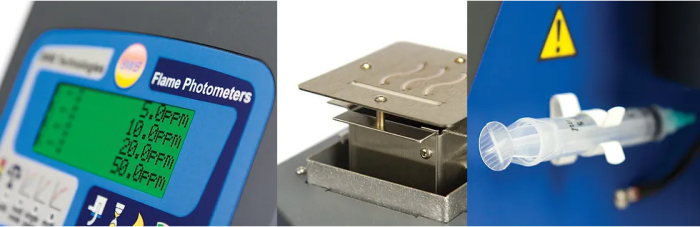

With clean lines and contemporary bright colour schemes, the XP looks exceptionally modern and will fit into any laboratory. The instrument has a large LCD display, which can be viewed easily from any angle.

Our metal casework provides a sturdy portable instrument and enables future recycling opportunities. ROHS compliant components and materials are used wherever possible.

The BWB Carbon Footprint is exceptionally low, in keeping with corporate objectives of being a responsible manufacturer.

Unlike other manufacturers who charge extra for vital accessories, BWB include everything required to use the product straight out of the box. Just add Gas!! (Propane, LPG or butane).

We also provide as standard, data sharing via USB from the BWB XP to your PC. This ties the output of the BWB Flame Emission Spectrometer (FES) to the Internet or your company intranet systems and facilitates Distributed Control which is vital for Multi-National companies, Universities and various Governmental agencies.

The BWB XP is the greatest advance in flame photometry for 30 years!

• SIMULTANEOUS DETECTION AND DISPLAY OF ALL 5 ATOMS OF INTEREST
• INTUITIVE USER INTERFACE FOR TRUE EASE OF USE
• DISPLAY PROMPTS STEP BY STEP OPERATION
• BUILT-IN AIR COMPRESSOR
• SOLUTIONS AND LABWARE INCLUDED
• DATA SHARING VIA PC LINK VIA USB
• OPERATOR INDEPENDENT DETERMINATION OF RESULTS
• 5 USER SELECTABLE UNITS OF MEASURE
• USER SELECTABLE DECIMAL PLACES
• INTEGRATED PRINTER OPTION USES READILY AVAILABLE PAPER
• IQ, OQ, PQ WEB-BASED CERTIFICATION AVAILABLE: IQ OQ PQ is completely unique in the analytical instrumentation arena. Available in English, Russian, German, Mandarin, French and Spanish.More languages in development
• CORRECTION OF CA FOR THE INTERFERENCE FROM HIGH LEVELS
  OF NA

Sample rate

• 2 – 3.5ml/min

Tubing materials

• Silicone and Tygon®

Required desk space for Instrument

• 50cm (H) x 45cm (W) x 45cm (D)*
• For Safety reasons the Flame photometer requires 1m of unobstructed space above to allow dissipation of heat from the chimney.

Instrument size

• XP Flame Photometer
• 51cm (H) x 39cm (W) x 35cm (D) (20in x 15in x 14in)

Shipping

• 65cm (H) x 49cm (W) x 43cm (D) (25in x 19in x 17in)

Weight

• XP Flame Photometer – 14kg (30.8lbs)
• Shipping – 25kg (55.1 lbs)

Optimal range

• Single point calibration
• Na 0.1 – 60ppm
• K 0.05 – 100ppm
• Li 0.05 – 50ppm
• Ca 1.0 – 100ppm
• Ba 1.6 – 100ppm

Multi Point Calibration

• Na 0.1 – 1000ppm
• K 0.05 – 1000ppm
• Li 0.05 – 1000ppm
• Ca 1.0 – 1000ppm
• Ba 5.0 – 3000ppm

Reproducibility

• <1% Coefficient of variability for 20 consecutive samples over ten minutes at concentrations of 100ppm equivalent or less. (After instrument stabilisation).


Specificity

• Na/K/Li = <1% to each other when equal in concentration at <100ppm

Limit of detection (LOD) and limit of quantification (LOQ)

• LOD: : : : :  LOQ: :
• Na – 0.03ppm: Na – 0.1ppm
• K – 0.02ppm:   K – 0.05ppm
• Li – 0.02ppm:  Li – 0.05ppm
• Ca – 0.3ppm:   Ca – 1ppm
• Ba – 1.6ppm:   Ba – 5.0ppm

Time to stability

• Less than 15 seconds after sample is introduced into the flame.

Ions measured

• Simultaneous measurement of Na, K, Li, Ca, Ba

Interfaces

• USB
• 0-2.5 volt output (based on sample concentration linked to element of users choice)
• Optional 4-20mA output in place of the above
• Optional integrated printer
• .csv and .pdf generated reports and files via FP-PC software

Recommended minimum warm up time based on ambient temperature

• 21ºC – 25 minutes

Power requirements

• 100V – 250V AC at 50 or 60Hz automatically selecting

Fuel requirement:

Propane, Butane or Natural Gas* regulated to 19Bar. Flow rate of 0.4l/min

*with modifications. BWB Technologies recommends either Propane or Butane for optimum results.

Readout

• LCD, four line, alpha numeric, back lit.

• PC Leads USB and RS232
• Power lead to suit your region
• Gas Hose
• Aspiration Kit
• Manuals covering all aspects
• of the XP FP
• Quick Start guides
• Warranty Registration Form
• Certificates of analysis for all
• provided Fluids
• Material Safety Data Sheets for all provided Fluids
• The FP-PC Software installation USB
• 150ml of BWB recommended
• cleaning solution
• 150ml calibration fluids for all 5 elements at 10,000ppm.
• 100ml conical flask with screw lid
• 100 disposable sample cups
• 1L of De-Ionised water
• 2m of waste tube
• Set of spare fuses
• 10 x 10ml pipettes
• 10 x 1ml pipettes
