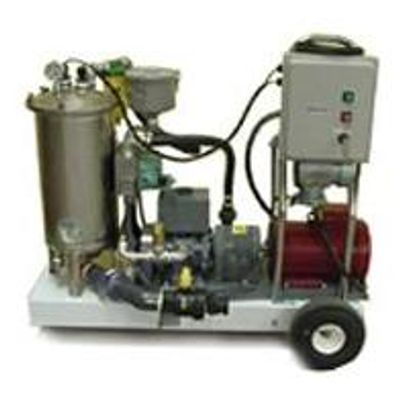

Edson - Model 290-10-06-5 -5 HP Vacuum Pumping System

Performance:

• Max Volume: 50 GPM / 189 LPM
• Suction Lift: 25ft / 7.6m / 23Hg
• Discharge Head: 23ft / 7m / 10psi
• Max Solids Size: 1.5" Dia.

 Features:

• Frame Size: 48"x15"x4" Extruded Aluminum
• Durability: Stainless Steel Transfer Cell - Powder Coated Aluminum Frame Frame-Oil Protected Air Pump.
• Safety: 24V Push Button Controls with Shut Off Timer Included
• Convenience: Clean Out Access Cover, Clear Check Valves, Easy Access Control Panel

 Comes Complete With:

• Fiberglass NEMA 4 Control Panel
• 70CFM 5HP Vane Air Pump
• Pneumatic Tires and Cushion Ride Casters (Portable only)

 Options:

• Hoses and Accessories
• Remote High Level Shut Off
• Multiple Electrical Configurations
• Constant Vacuum
