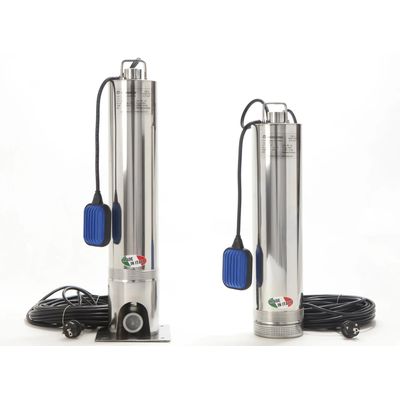

CS Waterpumps - Model R5 -5" Multi-Stage Monoblock Submersible Electric Pump
EMPLOYMENT: Multi-stage submersible electric pumps designed to solve all problems of conveying clean water with temperatures that do not exceed 35 ° C. Particularly suitable for irrigation, pressurization systems, emptying tanks and flooded rooms. Industrial and civil uses in general. The type of construction allows operation with a minimum level of water. Made of stainless steel, subjected to severe electrical and hydraulic tests. Max content of sand 60gr / metrocube. Max number of starts now 40.
Most popular related searches
multistage submersible electric pump
submersible electric pump
multistage submersible pump
electric pump
submersible pump
electric submersible pump
multistage pump
hydraulic testing
monoblock pump
glass separation
- Pump body, motor casing, handle, AISI 304 stainless steel intake grille;
- Molded brass supports;
- Impellers, diffusers and separators in glass-filled PPOm, each stage is complete with stainless steel wear ring;
- Crankshaft in stainless steel AISI 4300;
- Mechanical seal in alumina graphite lubricated with oil;
- On request in SILICIO CARBIDE;
- Special lip seal for sand protection.
- Asynchronous single phase V.230 50HZ or three-phase V 400 50HZ;
- Other voltages and frequencies on request;
- Insulation class F;
- Internal cooling in mineral oil bath for non-polluting food use;
- External cooling through pumped liquid;
- Built-in thermal protection.
